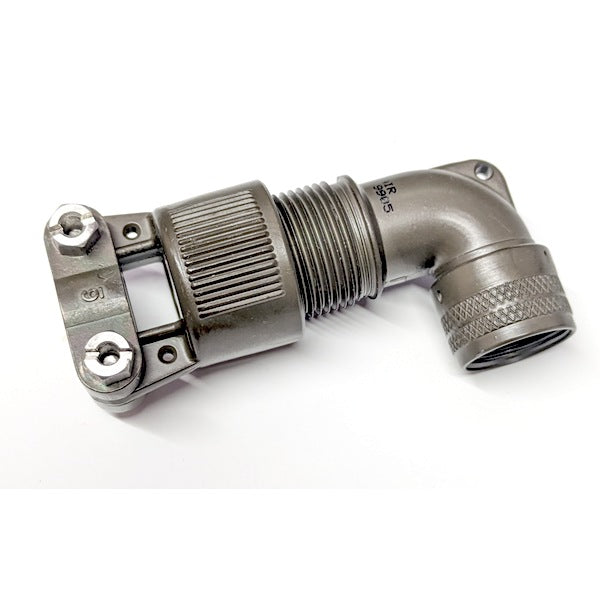

Glenair M85049/9-5W Cable Sealing Backshell (M8504995W)
Glenair M85049/9-5W Cable Sealing Backshell (M8504995W)
Regular price
$43.00 CAD
Regular price
Sale price
$43.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: NEW
NSN: 5935-01-585-0793 (5935015850793)
Specifications
- ABMK Overall Width 1.145 inches maximum
- ADMW Body Angle in DEG 90.0
- AGTW Cable Opening Diameter 0.250 inches minimum and 0.375 inches maximum
- AKEZ Distance from Centerline to Connector End 0.761 inches maximum
- AKFA Distance from Centerline to Cable End 2.409 inches maximum
- AKRD Cable Opening Quantity 1
- ALJP Size Designation 10
- AXHR Mounting Facility Type and Quantity 1 clamp assembly and 1 threaded coupling
- FEAT Special Features Color of finish is olive drab.
- MATT Material Aluminum
- SFTT Surface Treatment Cadmium and nickel
- STYL Style Designator Angle type W/clamp
