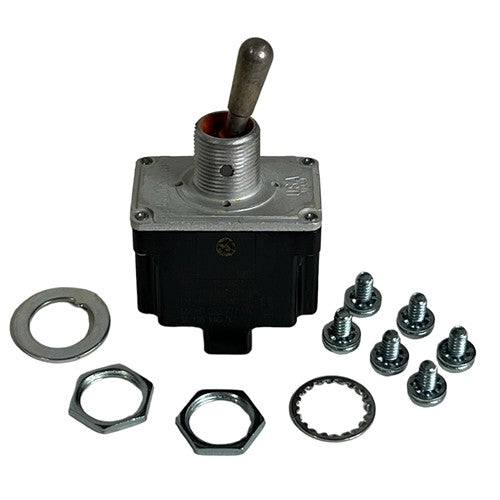

Honeywell Micro Switch 2TL1-8 New Genuine Original DPDT Environmentally Sealed Toggle Switch MS24524-26
Honeywell Micro Switch 2TL1-8 New Genuine Original DPDT Environmentally Sealed Toggle Switch MS24524-26
Regular price
$45.00 CAD
Regular price
Sale price
$45.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Ships from Toronto, Canada.
Condition: New Old Stock
The Honeywell 2TL1-8 is a genuine original military-grade toggle switch designed for high-reliability aerospace and industrial applications. This DPDT environmentally sealed component features a momentary On operation and is qualified to MIL-DTL-3950 standards to ensure consistent performance in harsh environments and extreme temperature ranges.
Key Data:
- Circuitry: DPDT (Double Pole Double Throw)
- Switch Action: 2 Position On-None-(On) Momentary
- Current Rating: 15 Amps at 125 VAC
- Current Rating DC: 20 Amps at 28 VDC
- Operating Temperature: -85 to 160 degrees F (-65 to 71 degrees C)
- Sealing: Qualified to MIL-DTL-3950
- Mounting: 15/32-32 Threaded Bushing
- Dimensions: 1.05 x 1.32 x 0.89 inches (2.67 x 3.35 x 2.26 cm)
