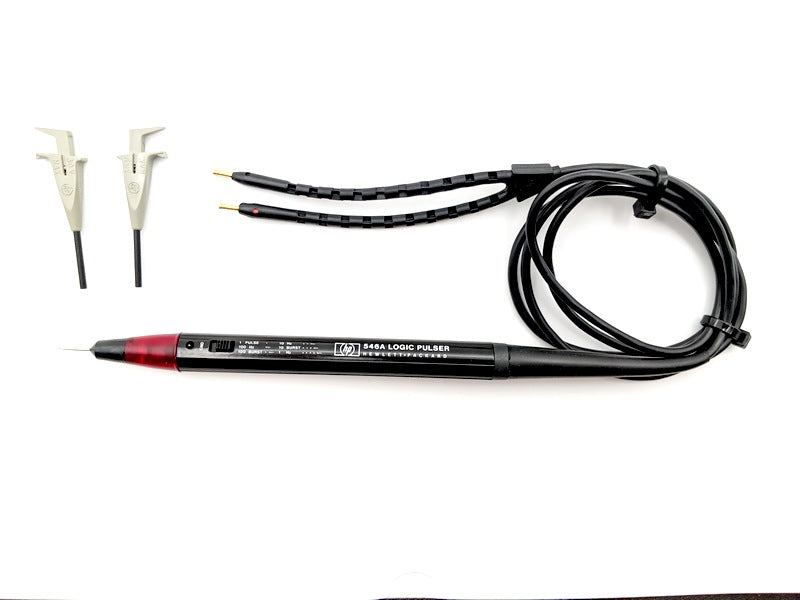

HP Hewlett-Packard 546A Logic Pulser With Clips
HP Hewlett-Packard 546A Logic Pulser With Clips
Regular price
$116.00 CAD
Regular price
Sale price
$116.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: Used, clean condition, pulled from federal government facility. Guaranteed working, sold with our no-hassle 30-day return warranty.
The HP 546A is a genuine original logic pulser designed for digital circuit troubleshooting. It stimulates logic nodes with high-current, short-duration pulses to override existing states, allowing technicians to verify IC functionality and identify stuck nodes without disconnecting components.
Key Data:
The HP 546A is a genuine original logic pulser designed for digital circuit troubleshooting. It stimulates logic nodes with high-current, short-duration pulses to override existing states, allowing technicians to verify IC functionality and identify stuck nodes without disconnecting components.
Key Data:
- Logic Compatibility: TTL and CMOS
- Frequency Range: Up to 80 MHz (TTL) and 40 MHz (CMOS)
- Power Supply: 3V to 18V DC (Powered by circuit under test)
- Pulse Mode: Single pulse or continuous pulse train (10 Hz)
- Protection: Overload and overvoltage protection up to ±120V
