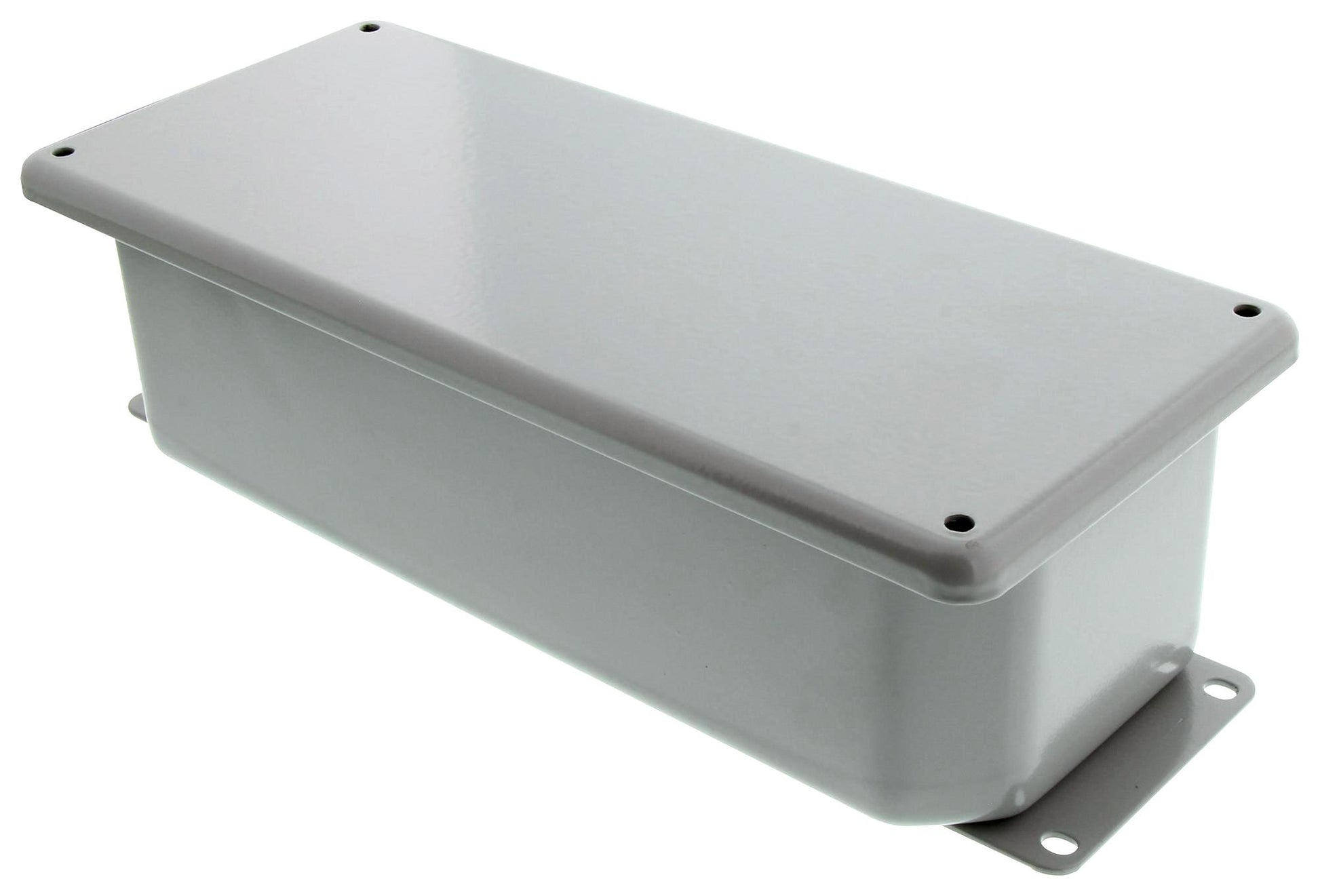

Hoffman A1043DSC Metal Enclosure, Electrical/Industrial, Steel, IP67

The A1043DSC is a Flat, Lift-Off Cover, Junction Box with ANSI 61 grey polyester powder paint inside and out, finish. It is an economical solution for a broad range of electrical and terminal wiring applications that don’t require a back panel. The enclosure features aesthetic, rounded corners and is in flat cover models for mounting flexibility.

Features

• IP67, NEMA-4, 6, 12, 13 Protection rating
• 16-gauge Steel
• No welded seams or sharp corners
• Cover screws
• Formed flanged cover
• Oil-resistant gasket
• External welded-on mounting brackets for easy installation
• Bonding provision on cover
• Grounding stud on body

Specs

• Enclosure Type: Electrical / Industrial
• Enclosure Material: Steel
• External Height - 10.3", 260.4mm
• External Width - 4", 102mm
• External Depth - 2.75", 70mm
• Capacity 102.8 cu. in., 1859 cc.
• IP Rating: IP67
• Body Color: Grey
• NEMA Rating: NEMA 4, 6, 12, 13
• UL 508A Listed, Type 4, 6, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 6, 12, 13, File No. E61997, CSA, File No. 42186: Type 4, 12, and 13, IEC 60529, IP67
