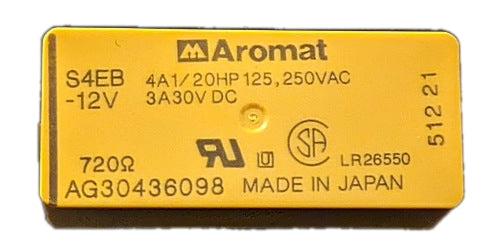

Panasonic (Aromat) S4EB-12V S Series General Purpose Relay
Panasonic (Aromat) S4EB-12V S Series General Purpose Relay
Regular price
$22.00 CAD
Regular price
Sale price
$22.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: NEW
The Panasonic S4EB-12V is a high-sensitivity, polarized power relay featuring a 4 Form A contact arrangement. Ideal for telecommunications, measuring equipment, and industrial controls, this compact S-series relay offers high shock resistance and stable performance with gold-clad silver alloy contacts for switching loads up to 4A at 250VAC.
Specifications:
The Panasonic S4EB-12V is a high-sensitivity, polarized power relay featuring a 4 Form A contact arrangement. Ideal for telecommunications, measuring equipment, and industrial controls, this compact S-series relay offers high shock resistance and stable performance with gold-clad silver alloy contacts for switching loads up to 4A at 250VAC.
Specifications:
- Contact Configuration: 4PST-NO
- Coil Voltage: 12VDC
- Contact Voltage 250VAC, 30VDC
- Contact Current: 4A
- Product Range: S Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Relay Terminals: Solder
- Relay Type: Power - General Purpose
- Contact Material: Silver Alloy
- Coil Resistance: 720ohm
