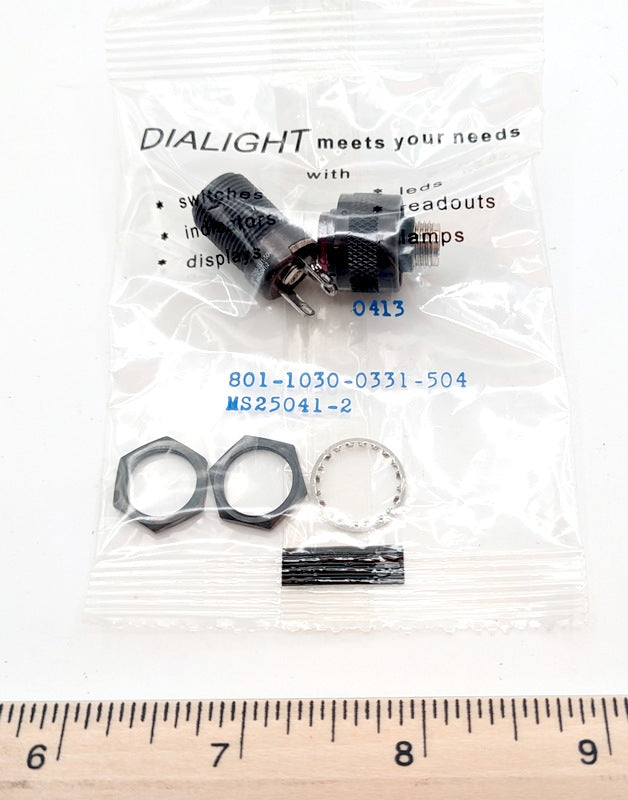

Dialight 801-1030-0331-504 New Genuine Original MS25041-2 Press-To-Test Indicator Light

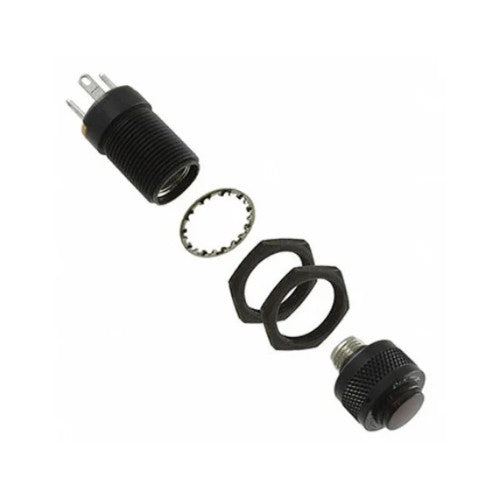

The Dialight 801-1030-0331-504 is a military-grade press-to-test indicator light designed for panel mounting in aerospace and industrial systems. This high-reliability assembly includes a red dimmable shutter lens and allows operators to verify lamp integrity through a simple push-to-test action without affecting the signal circuit.

Key Data:

• Indicator Type: Press-To-Test
• Lens Color: Red
• Lens Style: Flat Dimmable Shutter
• Mounting Hole Diameter: 15/32 inches (11.91 mm)
• Lamp Size Accommodated: T-1 3/4 Midget Flange
• Operating Voltage Range: 2.7 to 28 Volts
• Termination Style: Solder Lugs
• Overall Length: 1.75 inches (4.45 cm)
• Unit Weight: 0.026 lbs (0.012 kg)
