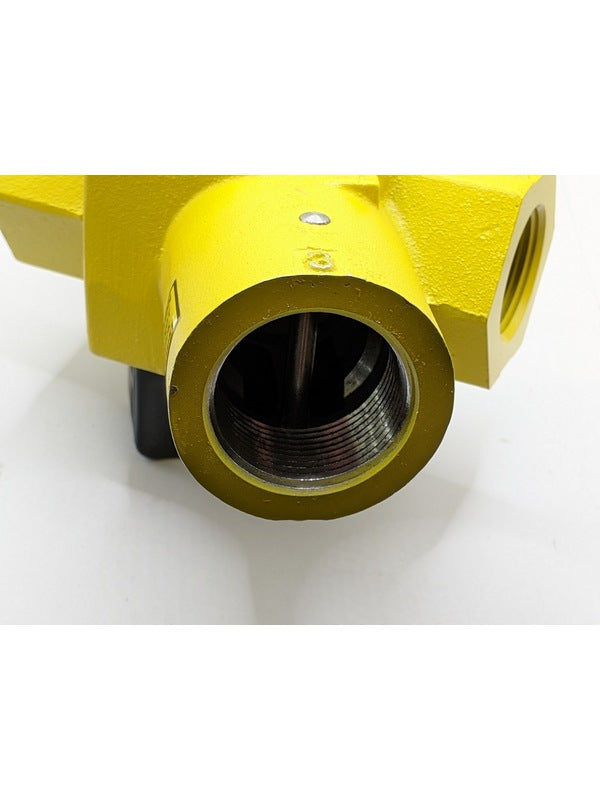

Ross Y1523C6002 Manual Lockout L-O-X Valve, 1" NPT, Classic 15 Series, Previously Used
Ross Y1523C6002 Manual Lockout L-O-X Valve, 1" NPT, Classic 15 Series, Previously Used
Ross

Ross Y1523C6002 Manual Lockout L-O-X Valve, 1" NPT, Classic 15 Series, Previously Used

Regular price $129.00 $0.00 Unit price per
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Ships from Toronto, Canada.
Condition: Used. See photos of actual unit. Sold with our no-hassle 30-day return warranty.
Features
  • Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
  • Easily identified by yellow body with red handle
  • Integrated sensing port for pressure verification
  • Lockable only in the OFF position
  • Has a full size exhaust port (equal to or larger than supply)
  • Simple push/pull of the large red handle provides positive direct manual operation
Specifications
  • Description: : Lockout Valve 15 Series / Classic Manual 3/2 Way, 1" In-Out 1-1/4" Exhaust NPT
  • Valve Function 3/2
  • Actuation Manual
  • Thread Type NPT
  • Voltage No Voltage
  • Port Size (In-Out) 1"
  • Port Size (Exhaust) 1-1/4"
  • Cv (In-Out) 16.6
  • Cv (Exhaust) 9.5
  • Body Material Aluminum
  • Inlet Pressure Range 0 to 300 psig (0 to 20.7 bar)
  • Ambient Temperature Range 40 to 175 F (4 to 80 C)
  • Media Temperature Range 40 to 175 F (4 to 80 C)
  • Flow Media Filtered Air
  • WEIGHT: 2.5 lbs (1.13 kg)
