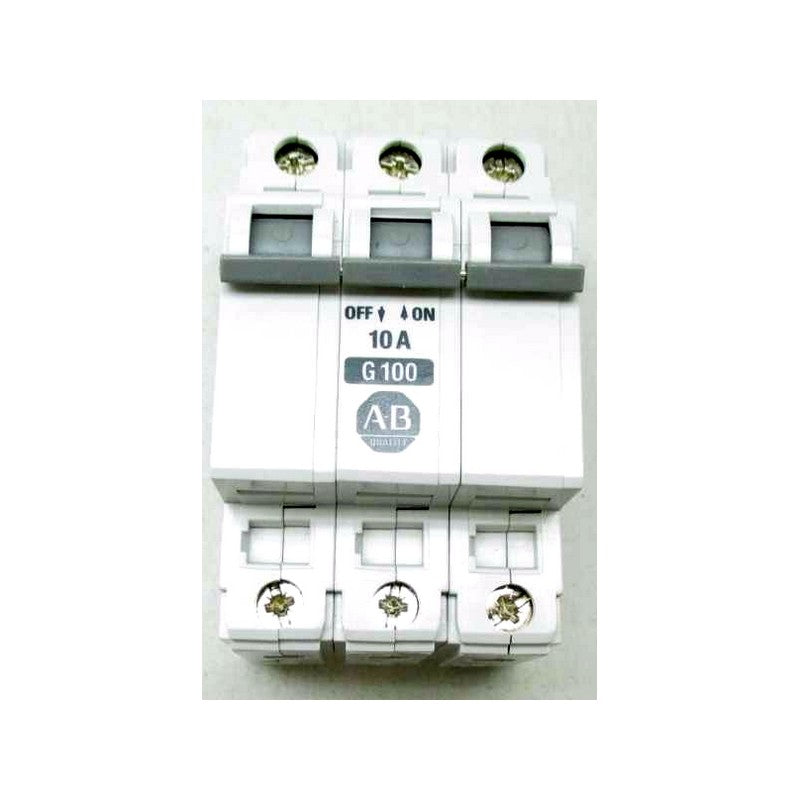

Allen-Bradley 1492-CB3-G100 10A, 3-Pole, 3-Phase, 480V, Circuit Breaker, DIN Mount
Allen-Bradley

Allen-Bradley 1492-CB3-G100 10A, 3-Pole, 3-Phase, 480V, Circuit Breaker, DIN Mount

Regular price $59.00 $0.00 Unit price per

Condition: Used, pulled from working environment. Very clean, guaranteed working. Sold with our "no-hassle" 30-day return warranty.

1492 Series, supplementary protector, 3P, 3PH, 10A, 480V, thermal magnetic, G trip type, miniature molded case circuit breaker.

A three pole, lever style on/off circuit breaker from Allen Bradley for use on DIN rails. Complies with IEC 934, 898, and 950 spacing requirements. Bulletin 1492-CB series C are energy limiting thermal magnetic type overcurrent protectors meeting UL 1077/CSA 22.2 No. 235, IEC/EN 60934.

Features
  • Easily snaps on and off DIN Rail for ease of installation and replacement
  • Positive trip-free mechanism
  • Melamine-phenolic body provides toughness and durability
  • Type G has a magnetic trip activated at 6-10 times the rated current of the circuit breaker
  • Phase 3
  • Poles 3
  • Voltage 480
  • Amperage 10
  • Protection Thermal Magnetic
  • Functions LI - Long-Time and Instantaneous
  • AIC Rating 10kA@480V
