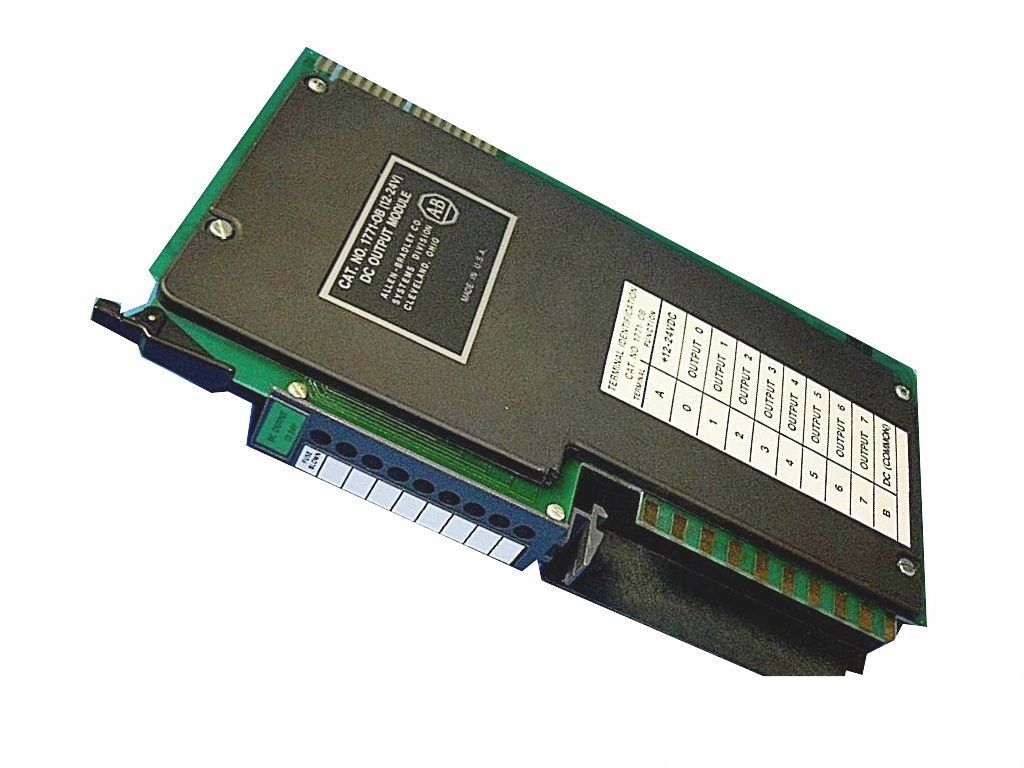

Allen-Bradley 1771-OB DC Output Module 12-24VDC (1771OB)

Allen-Bradley 1771-OB DC Output Module 12-24VDC (1771OB)

Regular price $39.00 $0.00 Unit price per


Condition: Used, clean, pulled from a working environment, guaranteed working. Sold with our "no-hassle" 30-day return warranty.

  • Cable Allen-Bradley 1771-CP1
  • Encoder Allen-Bradley 1771-HTE
  • Power Supplies Allen-Bradley 1771-P2, Allen-Bradley 1771-P4S, Allen-Bradley 1772-P1
  • Standard Power Supplies Allen-Bradley 1771-P7, Allen-Bradley 1771-PA
  • Teach Pendant Interface Allen-Bradley 1771-HD
  • Description: DC Output Module
  • Outputs per Module: 8
  • Output Voltage Range: 10 to 27V dc
  • Backplane Current: 165mA @ 5V dc +5%
  • Thermal Dissipation: 57.6 BTU/hr (max.), 3.0 BTU/hr (min.)
  • Power Dissipation: 16.9 Watts (max.), 0.9 Watts (min.)
  • Output Signal Delay: 10ms on/off
  • Power Rating (Maximum): 3 Watts Per Output
  • On-State Voltage Drop (Max.): 2V dc
  • Isolation Voltage: 1500V ac rms
  • Surge Current (Maximum per Output): 4A for 1ms, Repeatable Every 1s
  • Off-State Leakage Current (Maximum): 1mA per Output @ 27V dc
