Amphenol 126-223 Miniature Hexagonal Connector, 5-pin (NSN 5935-00-578-9374)
Amphenol 126-223 Miniature Hexagonal Connector, 5-pin (NSN 5935-00-578-9374)
Amphenol 126-223 Miniature Hexagonal Connector, 5-pin (NSN 5935-00-578-9374)
Amphenol 126-223 Miniature Hexagonal Connector, 5-pin (NSN 5935-00-578-9374)
Amphenol 126-223 Miniature Hexagonal Connector, 5-pin (NSN 5935-00-578-9374)
Amphenol 126-223 Miniature Hexagonal Connector, 5-pin (NSN 5935-00-578-9374)
Amphenol

Amphenol 126-223 Miniature Hexagonal Connector, 5-pin (NSN 5935-00-578-9374)

$29.00 $0.00
FREE SHIPPING TO ANYWHERE IN USA OR CANADA INCLUDED!
Ships from Toronto, Canada.
Condition: NEW

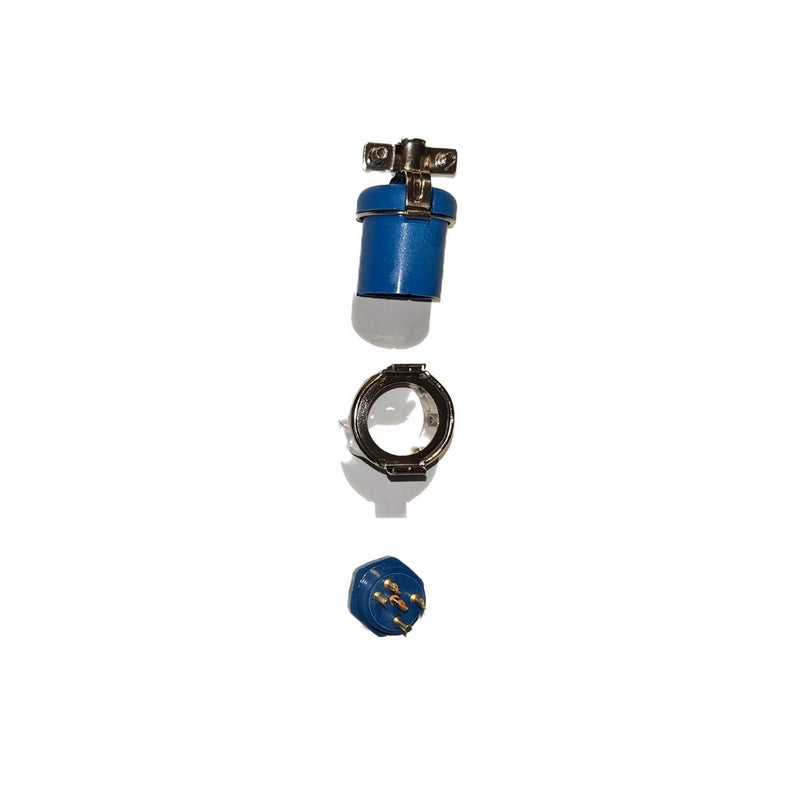

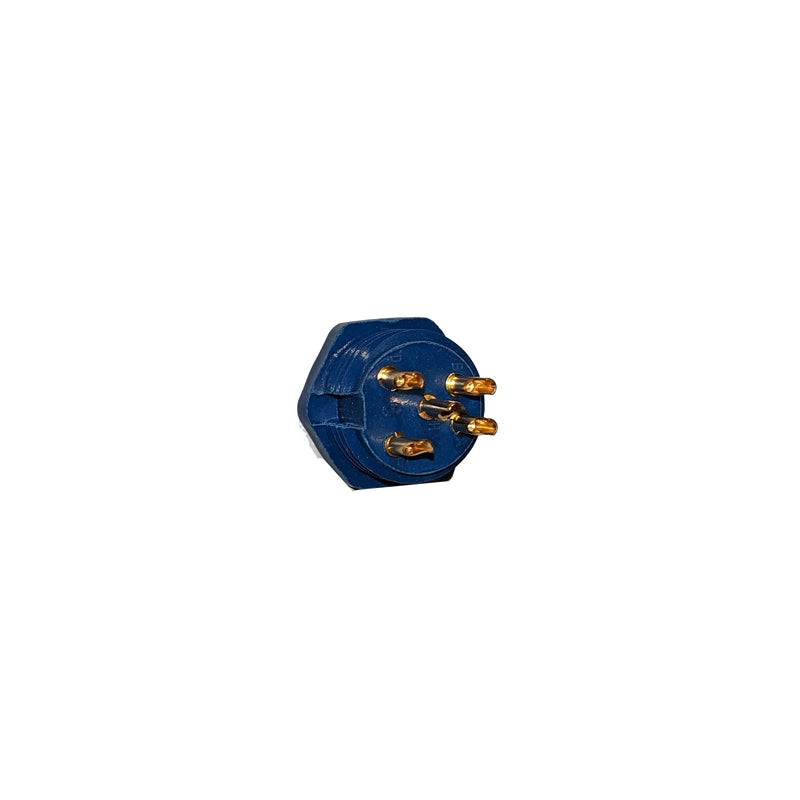

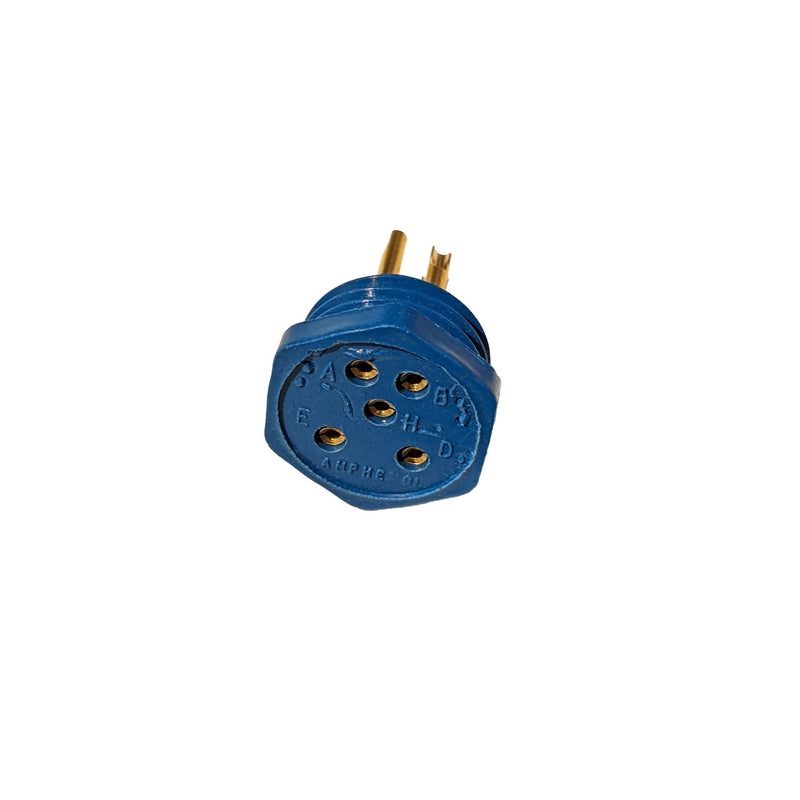

Thermoplastic body. Cable inline receptacle with 126-1064-02 locksleeve and 126-1063 hood and cable clamp. Solder cup terminals, 126-223 has 5 female contacts. Mates with 126-217.
Connector 126-223 from 126 series can be used for rack and panel cable to cable and cable to panel connections. Locking sleeve 126-1064-02 prevents unmating caused by vibration or shock. Made in USA.

Specifications

  • Number Of Contacts: 5
  • Voltage Rating: 500.0 V
  • Current Rating: 7.50 A
  • Connector Gender: F
  • Mounting Type: Inline

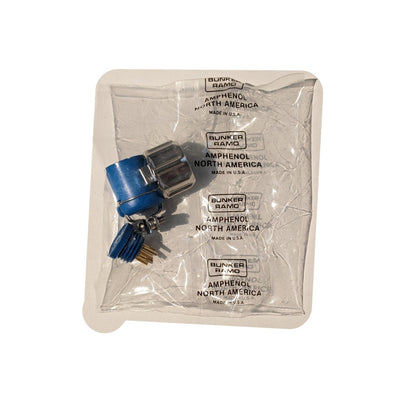

  • Package: Individually Sealed
  • Item Per Pack: 1
Cross Reference
  • 126223
  • 5935005789374
  • DLA-900-81-P-A463
  • DLA90081PA463
