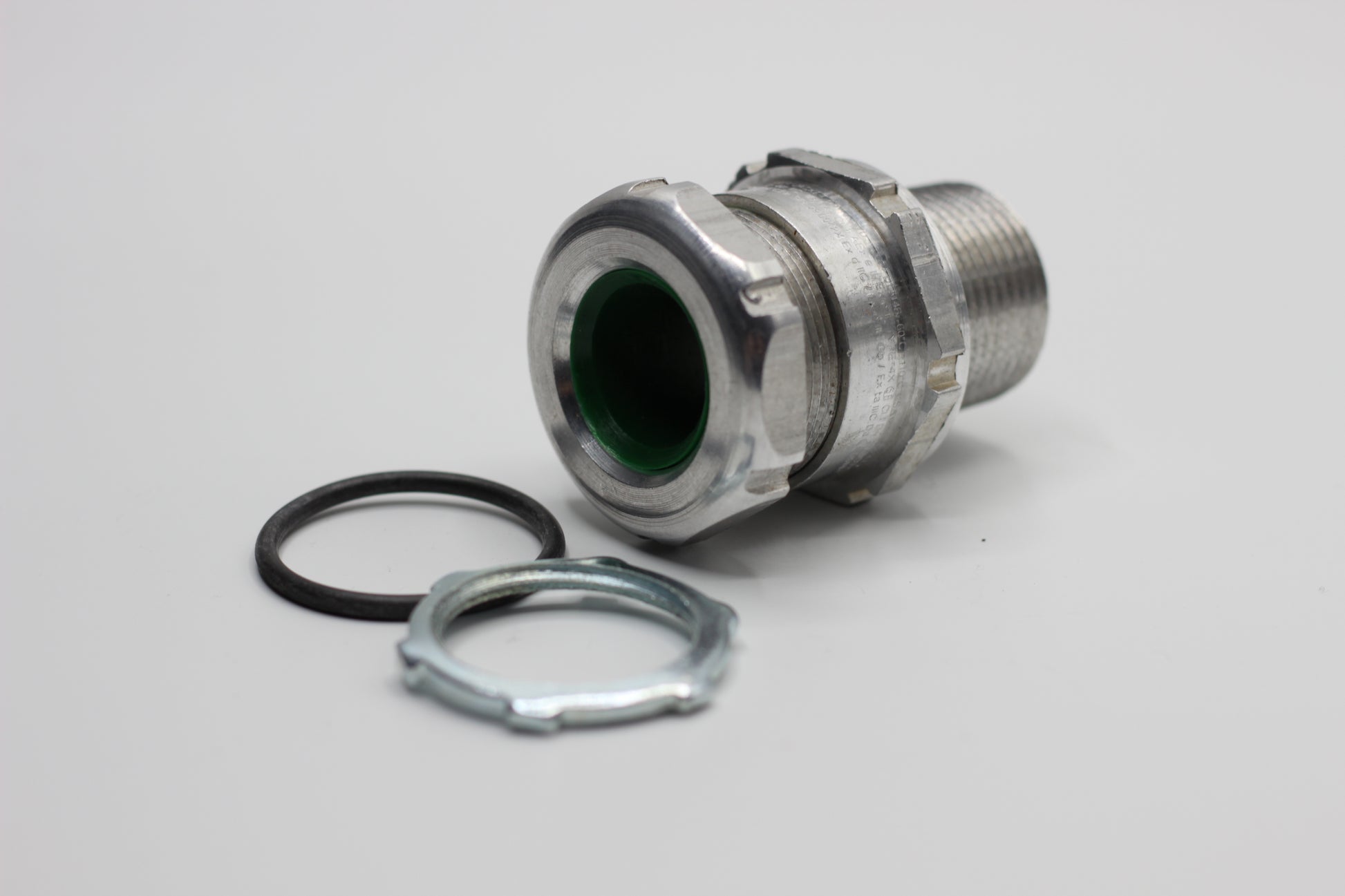

Appleton TC-100104 TC Cable Connector
Appleton TC-100104 TC Cable Connector
Appleton

Appleton TC-100104 TC Cable Connector

Regular price $24.99 $0.00 Unit price per
Type TC cable connector is suitable for use with type (TC) tray cable and flex cord in ordinary, wet and hazardous locations including:
  • Class I, Division 2, where permitted by code
  • Class I, Zone 1 AEx e and Ex e, where permitted by code
  • Ingress protection to NEMA 4X and IP66/67/68
Features
  • 1" NPT Entry Thread
  • 0.67" - 0.85" Cable Range Insert
  • 0.85" - 1.04" Cable Range No Insert
  • Guarantees code compliance by satisfying the requirements of NEC article 501.10(B)(1)
  • The unique use of the seal insert, enables each gland size to terminate the widest range available in a single hub size.
  • Continuous operating temperature: -60 °C to 110 °C (-76 °F to 230 °F).
  • Jacket sealing technique: compensating displacement seal
NEC/CEC Certifications and Compliances
  • UL Standard: 514B, 2225
  • CSA Standard: CSA 22.2 No. 30, CAN/CSA E60079-0, CAN/
  • CSA E60079-7
  • cCSAus Certified: 184585
