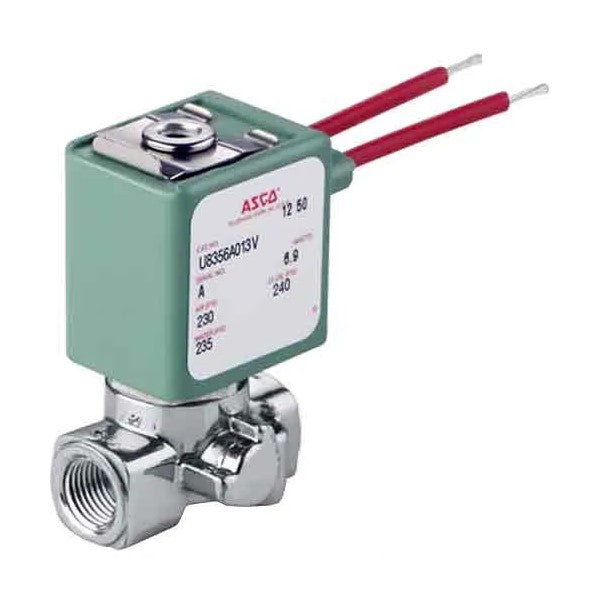

ASCO U8256A107E 8256 Series Two-Way Potable Water/Food Service Sub-Miniature Solenoid 1/4inch NPT Valve 24VDC
Asco

ASCO U8256A107E 8256 Series Two-Way Potable Water/Food Service Sub-Miniature Solenoid 1/4inch NPT Valve 24VDC

Regular price Cdn $89.00 Cdn $0.00 Unit price per

FREE SHIPPING!

Condition: New

Features
  • 316 stainless steel NSF 61 and 169 listed model for potable water and food service use
  • Approval for NSF 61 drinking water system and NSF 169 special purpose food equipment and devices, NSF/ANSI Standard 61, Annex
  • Open frame enclosure with 18" leads
  • UL recognized, CSA certified
  • G (Lead content ≤0.25%)
  • Mountable in any position
Specifications
  • Pipe size 1/4" NPT
  • Orifice size 3/32"
  • Cv Flow Factor 0.15
  • Power (VDC) 24
  • Watts 6.9
  • Two way normally closed operation
  • Body 316 Stainless Steel
  • Core Tube/Bonnet S.S. / S.S.
  • Core and Plugnut Stainless Steel
  • Springs Stainless Steel
  • Seals and Disc EPDM
  • Shading Coil Copper
  • Max. Operating Pressure Differential 130psi Water
  • Max. Fluid Temp. (°F) 180
  • Watt Rating Class of Coil Insulation 6.3/F
