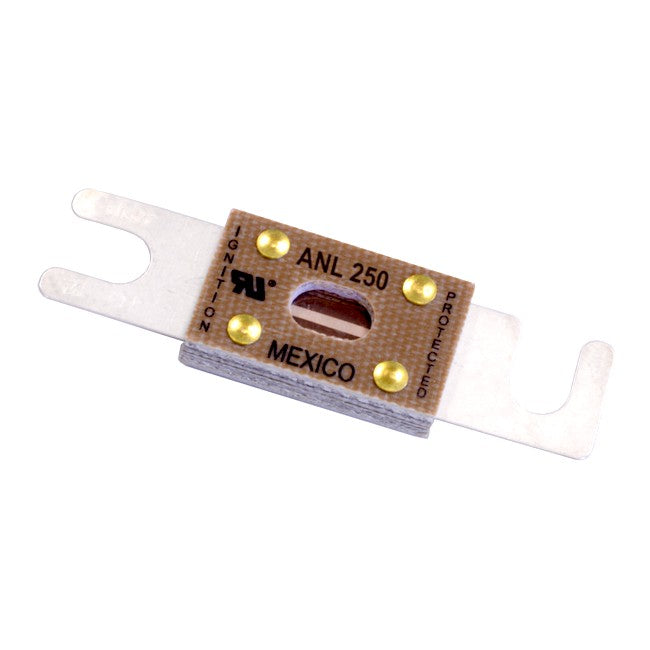

Blue Sea Systems 5131 ANL 250A Fuse
Blue Sea Systems

Blue Sea Systems 5131 ANL 250A Fuse

Regular price $35.00 $0.00 Unit price per


Condition: Fuses are new but missing their original packaging so will ship in generic packaging and thus being sold as "like new". Sold with our "no-hassle" 30-day return warranty.

Ignition Protected Devices, which operate in a potentially explosive environment, must be ignition protected. This would include engine rooms with gasoline engines. There is a very specific set of tests which a device must pass to claim ignition protection. They include operating safely in an explosive mixture of propane and air.

250 Amp Fuse with Maximum Voltage 32 Volts DC.
  • Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats (35-500 Amp only)
  • Silver-plated connector blades for corrosion resistance
  • Visible indication of blown condition
  • 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
  • Amperage 250A
  • Ignition Protected Yes
  • Maximum Voltage 32V DC
  • Interrupt Capacity The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage. 6000A @ 32V DC
