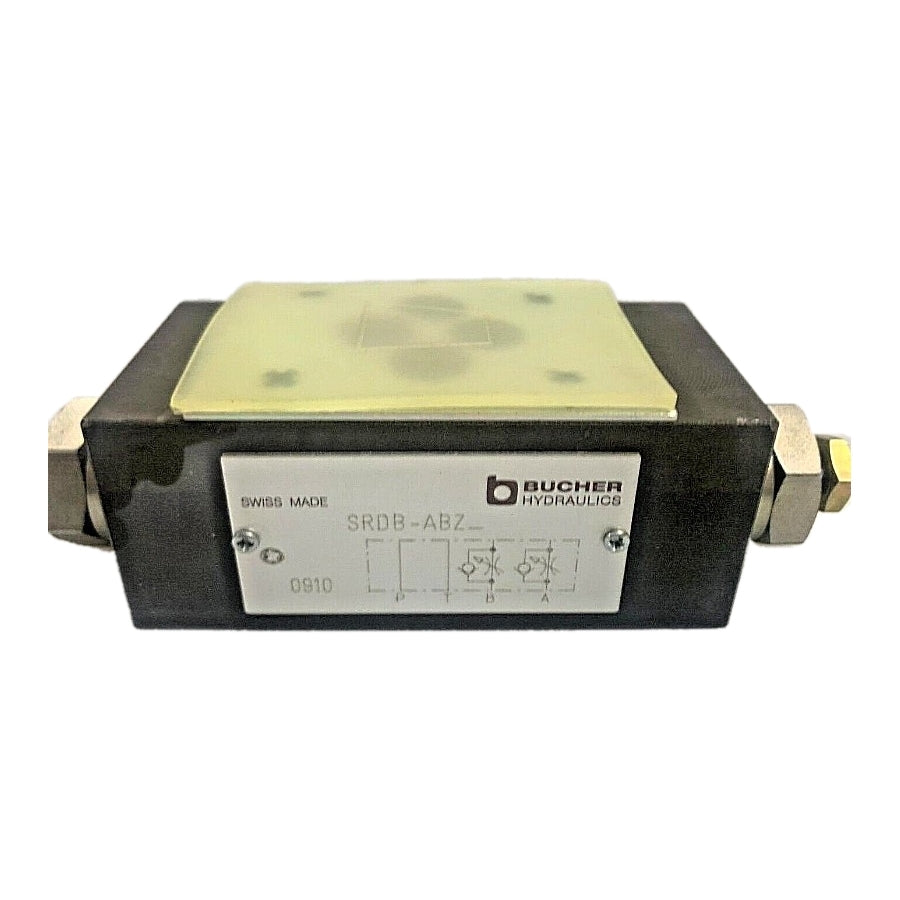

Bucher Hydraulics SRDB-ABZ-10-1 Stacking Throttle/Check Sandwich Valve, 10mm
Bucher Hydraulics

Bucher Hydraulics SRDB-ABZ-10-1 Stacking Throttle/Check Sandwich Valve, 10mm

Regular price $299.00 $0.00 Unit price per

Model Number: SRDB-ABZ-10-1

Condition: New, unused, missing manufacturer packaging.

Series SRDB..-10 stack-mounting throttle valves use the well known ”sandwich” principle - they are mounted between a size 5 directional valve and another control module or the subplate.

Features

  • Meter-in or Meter-out by inverting the valve
  • Self-cleaning metering orifice
  • Self-locking adjusting screw and locknut
  • Fine control at low flows
  • Improved p values
  • Optional hand knob available
  • With ISO 4401 / CETOP R35H size5, NFPA D05, DIN 24 340 A10 interface
  • Made in Switzerland

Technical Details

  • Designation stacking throttle / check valve
  • Design direct acting, spool type
  • Mounting method stack mounting
  • Size ISO 4401 size 5 interface
  • Weight 2.8 kg
  • Mounting attitude unrestricted
  • Operating pressure range (max.) bar 350
  • Cracking pressure (approx.) bar 0,7; free flow
  • Flow rate, Qmax l/min 160, see performance graphs
  • Fluids HL and HLP hydraulic oils to DIN 51 524;
  • For other fluids, please consult BUCHER
  • Fluid temperature range -25 to +80 C
