Carrier 11002012003679 New Genuine Original 36W Fan Motor
Carrier 11002012003679 New Genuine Original 36W Fan Motor
Regular price
$132.00 CAD
Regular price
Sale price
$132.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: NEW. Motor has a few cosmetic scratches from storage & handling but item is new and unused.

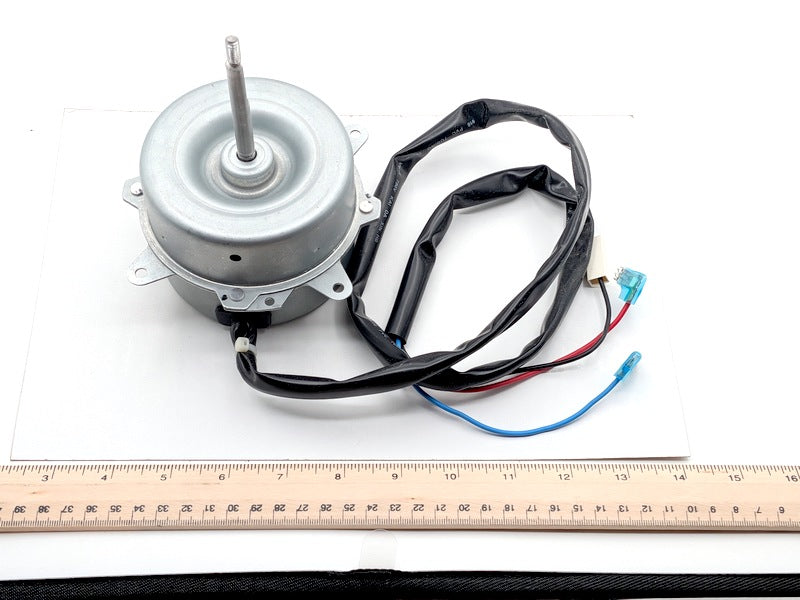

This Carrier 11002012003679 genuine original fan motor, manufactured by Guangdong Welling Motor Manufacturing Co., Ltd., is designed for select room air-conditioning, heat-pump and central air-conditioning applications.

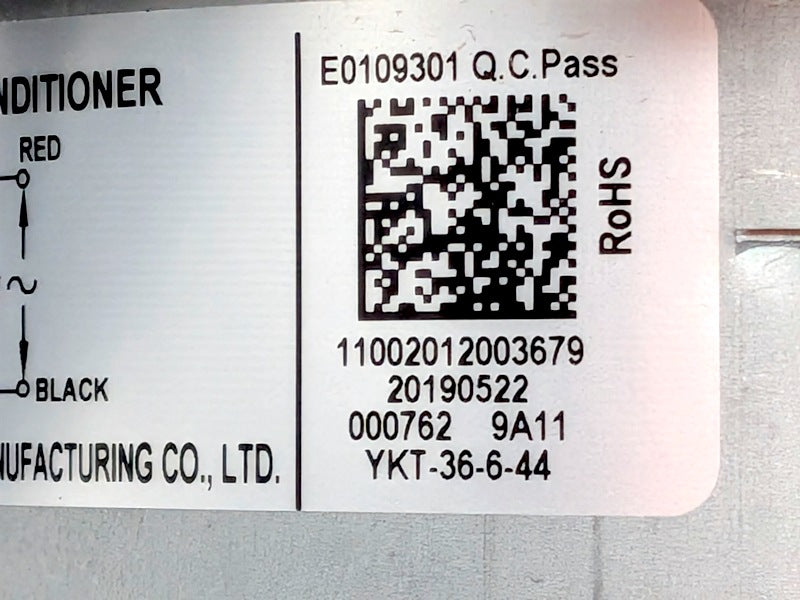

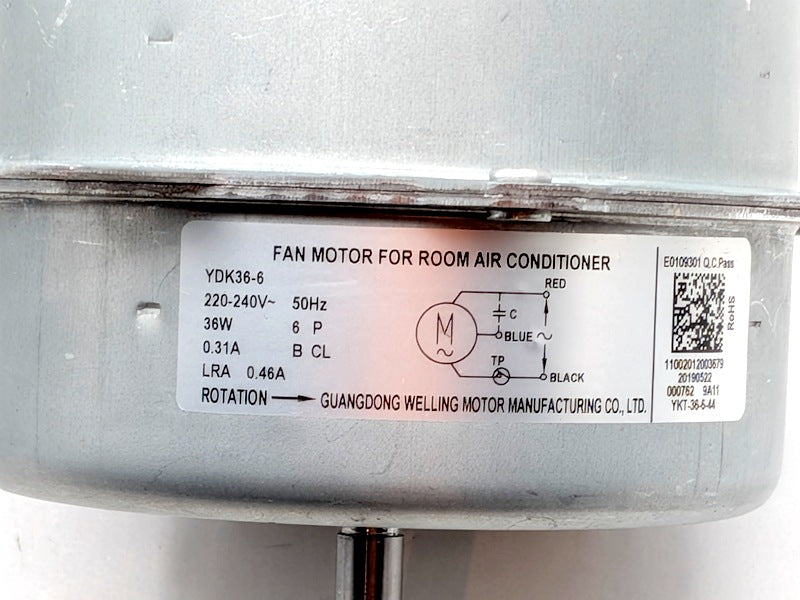

The motor is marked YDK36-6 and YKT-36-6-44 and is rated at 220–240 VAC, 50 Hz, 36 watts and 0.31 amps. It is a 6-pole asynchronous/PSC-type motor with Class B insulation and a 0.46A locked-rotor rating. Published specifications give a 5/16-inch shaft diameter and approximately 2-3/4-inch shaft length.
This Carrier 11002012003679 genuine original fan motor, manufactured by Guangdong Welling Motor Manufacturing Co., Ltd., is designed for select room air-conditioning, heat-pump and central air-conditioning applications.
The motor is marked YDK36-6 and YKT-36-6-44 and is rated at 220–240 VAC, 50 Hz, 36 watts and 0.31 amps. It is a 6-pole asynchronous/PSC-type motor with Class B insulation and a 0.46A locked-rotor rating. Published specifications give a 5/16-inch shaft diameter and approximately 2-3/4-inch shaft length.
Key Data:
- Manufacturer Carrier / Guangdong Welling
- OEM Part Number 11002012003679
- Motor Model YKT-36-6-44 / YDK36-6
- Voltage 220–240 VAC
- Frequency 50 Hz
- Power 36 W
- Current 0.31 A
- LRA 0.46 A
- Poles / Insulation 6 Pole / Class B
- Shaft 5/16" dia. × approx. 2-3/4" long
Cross Reference:
- Carrier 11002012003679
- Carrier 11002012002816
- Carrier 11002012003678
- Carrier 202400401361
- Carrier 202400400729
- Welling YKT-36-6-44
- Welling YDK36-6
- E0109301 – additional marking
- Totaline 4001005049 – distributor SKU
