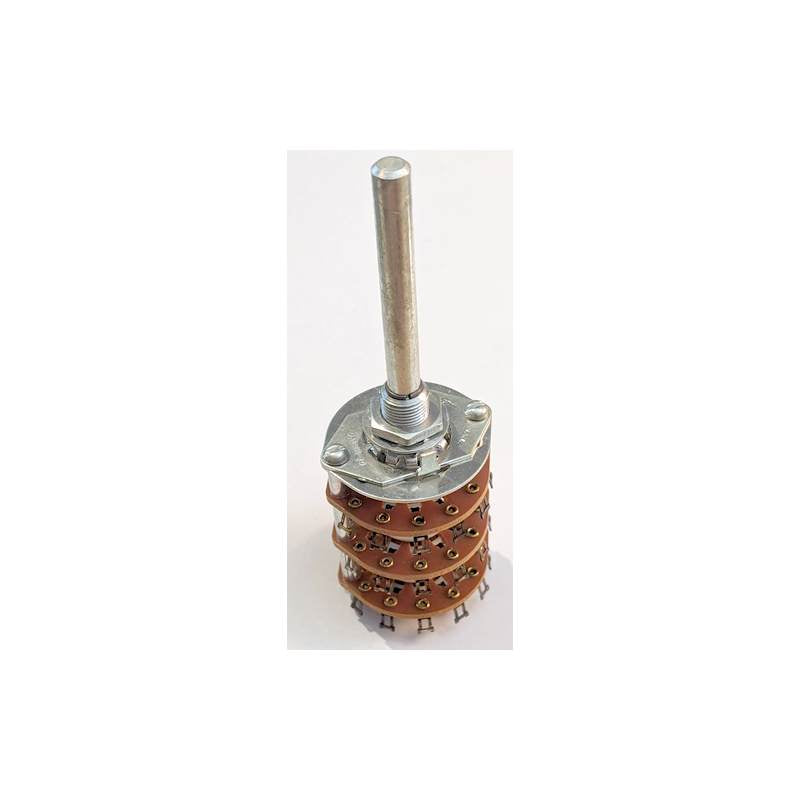

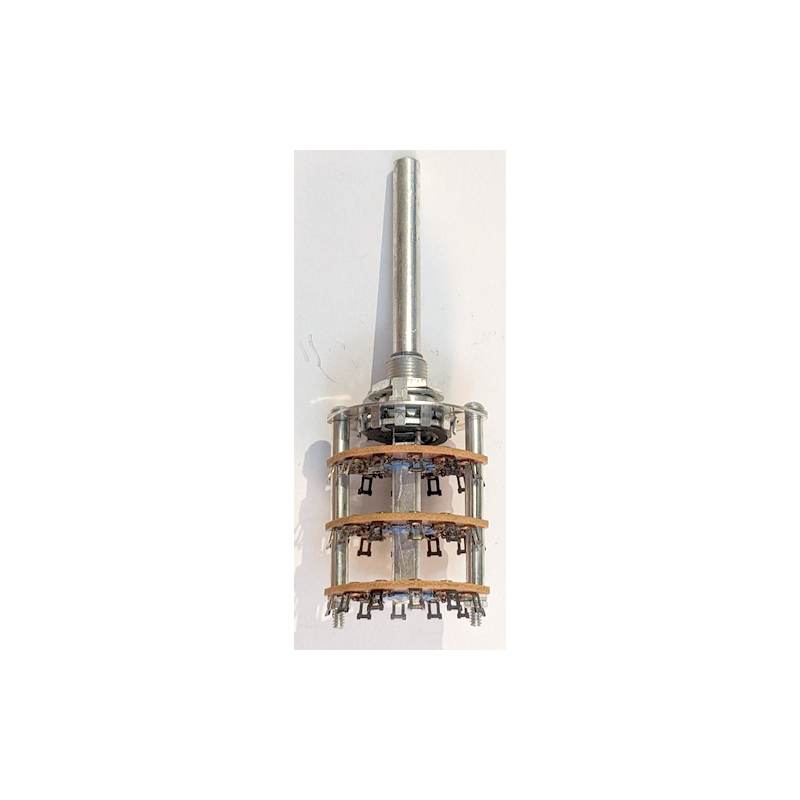

Centralab Electroswitch Corp. PA1009 Rotary Switch (NSN: 5930-00-701-1858)

Regular price $31.00 $0.00 Unit price per

FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!

Condition: New

Specifications
  • Thread Length 0.375 inches single mounting facility
  • Overall Length 4.250 inches
  • Overall Height 1.938 inches
  • Overall Width 1.500 inches
  • Shaft Diameter 0.250 inches single actuator
  • Shaft Length 2.250 inches single actuator
  • Individual Section Quantity 3
  • Switch Contact Basic Design Nonpile-up symmetrical
  • Pole Quantity 1 each section rear
  • Throw Quantity 11 each section rear
  • Mounting Method Threaded bushing single mounting facility
  • Shaft Type Round single actuator
  • Terminal Type Tab, solder lug
  • Contact Switching Action Breaks before makes each section rear
  • Switch Actuator Positioning Increment 30.0 degrees single actuator
  • Switch Actuator Stop Device Type Adjustable stop single actuator
  • Style Designator Circular wafer, bushing mount
  • Thread Series Designator Unef single mounting facility
  • FSC 5930 Switches
  • NIIN 007011858
  • NSN 5930007011858
