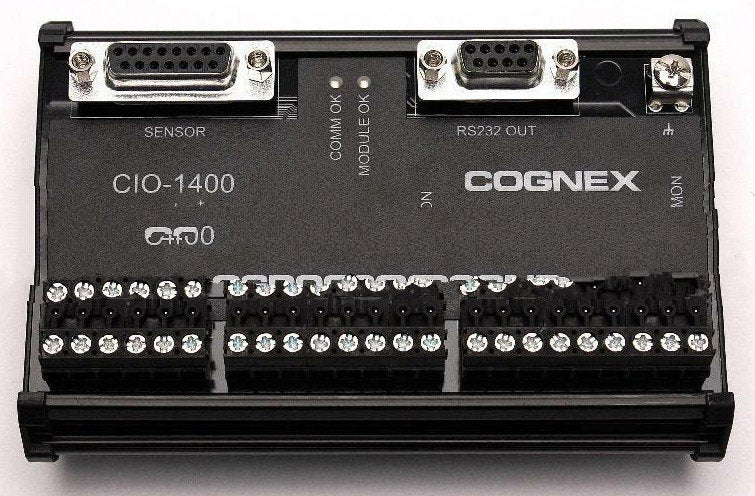

Cognex CIO-1400 In-Sight 1400 I/O Expansion Module
Cognex CIO-1400 In-Sight 1400 I/O Expansion Module
Cognex

Cognex CIO-1400 In-Sight 1400 I/O Expansion Module

Regular price $59.00 $0.00 Unit price per

Condition: Used, clean, pulled from working environment. Will ship in generic box with user manual. Sold with our 30-day "no-hassle" return warranty.

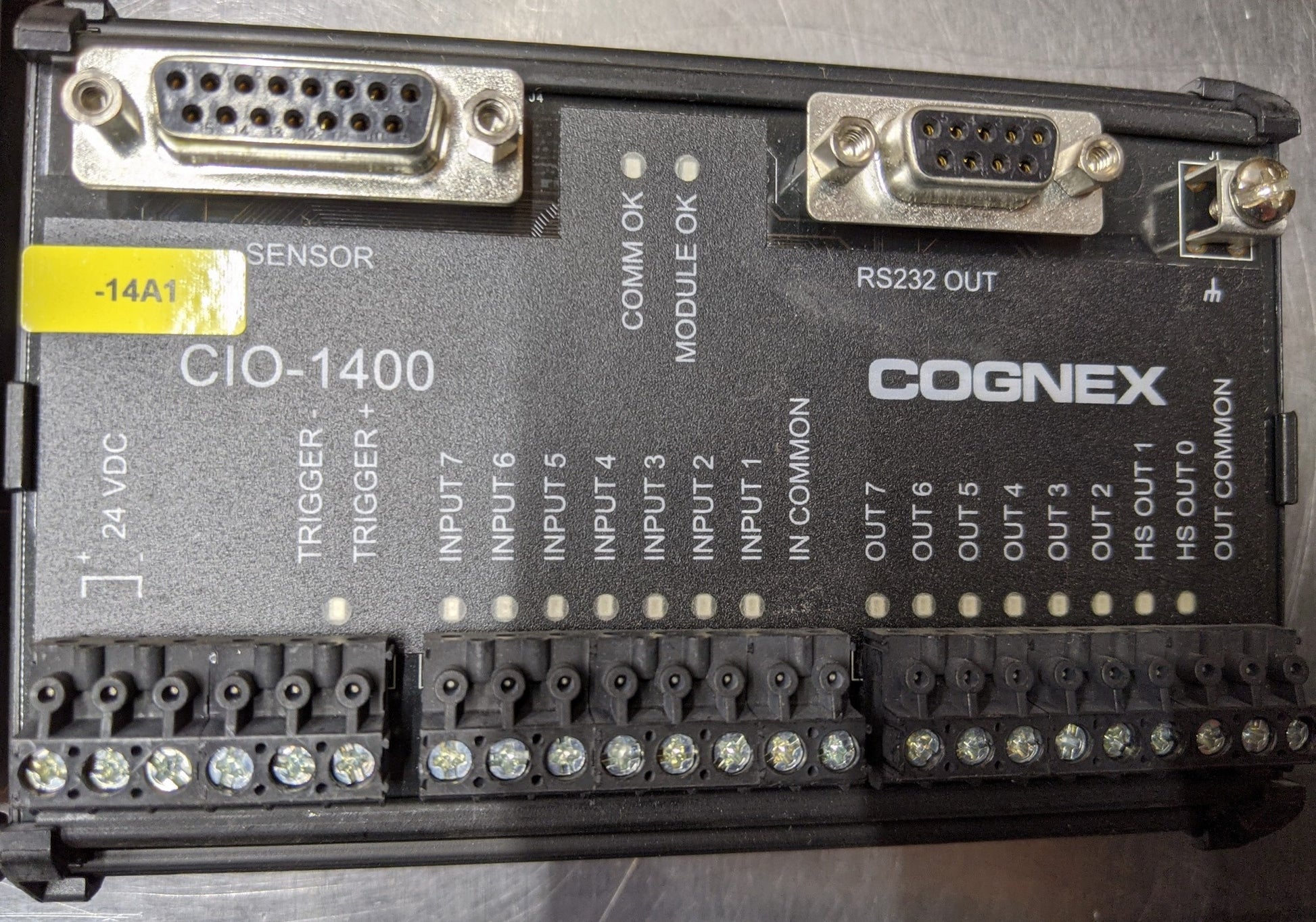

The In-Sight® Model 1400 I/O Expansion Module provides a convenient way to access the power, serial, trigger and high-speed output connections of the In-Sight 3400 and 5000 series sensors. The expansion module also extends the capabilities of these sensors by adding discrete inputs/outputs and hardware handshaking for serial communications.

Features
  • Detachable terminal blocks
  • LED status indicators - MODULE OK, COMM OK (data transmission), and one for
  • trigger and each input and output
  • DIN-Rail mountable
  • An I/O cable is needed to connect an In-Sight sensor to the 1400 I/O Expansion Module.

An I/O cable is needed to connect an In-Sight sensor to the 1400 I/O Expansion Module.
The I/O cable has a DB15 connector on one end, and an M12 connector on the other. I/O cables must be purchased separately

Specifications
  • Compatibility In-Sight 3400 and In-Sight 5000 Series Vision Sensors
  • I/O Trigger 1 optically isolated trigger input
  • Inputs 7 optically isolated discrete (general-purpose)
  • Outputs 6 optically isolated discrete (general-purpose) (Maximum 30 VDC, 100 mA)
  • High Speed Outputs 2 non-isolated discrete (high-speed) (Maximum 28 VDC, 200 mA)
  • Communications Serial 1 RS-232C port (2400 to 115,200 baud rates), 8 data bits,
  • 1 stop bit, RxD, TxD and Flow Control (RTS/CTS & XOn/XOff)
  • Status LEDs MODULE OK, COMM OK, one for trigger and each input and
  • output
  • Mechanical Housing Black plastic
  • Mounting #3 DIN-rail (35 mm)
  • Dimensions Width: 130.0 mm (5.12 in), Depth: 89.6 mm (3.53 in),
  • Height: 46.6 mm (1.84 in)
  • Terminal Block 26 to 16 AWG
  • Torque 0.4 Nm (3.5 in-lb.)
  • Weight 164 g (5.8 oz.)
  • Power Supply 24 VDC ±10%, 750 mA
  • Environmental Temperature Operating: 0°C to 50°C (0°F to 122°F)
  • Storage: –10°C to 65°C (0°F to 149°F)
  • Humidity Operating and Storage: 0 to 90%, non-condensing
  • Altitude 2000 m (6565 ft)
  • Pollution Degree 2
  • Shock 80 G per IEC 68-2-27
  • Vibration 10 G per IEC 68-2-6
  • Regulatory Compliance CE, FCC, CSA, RoHS
