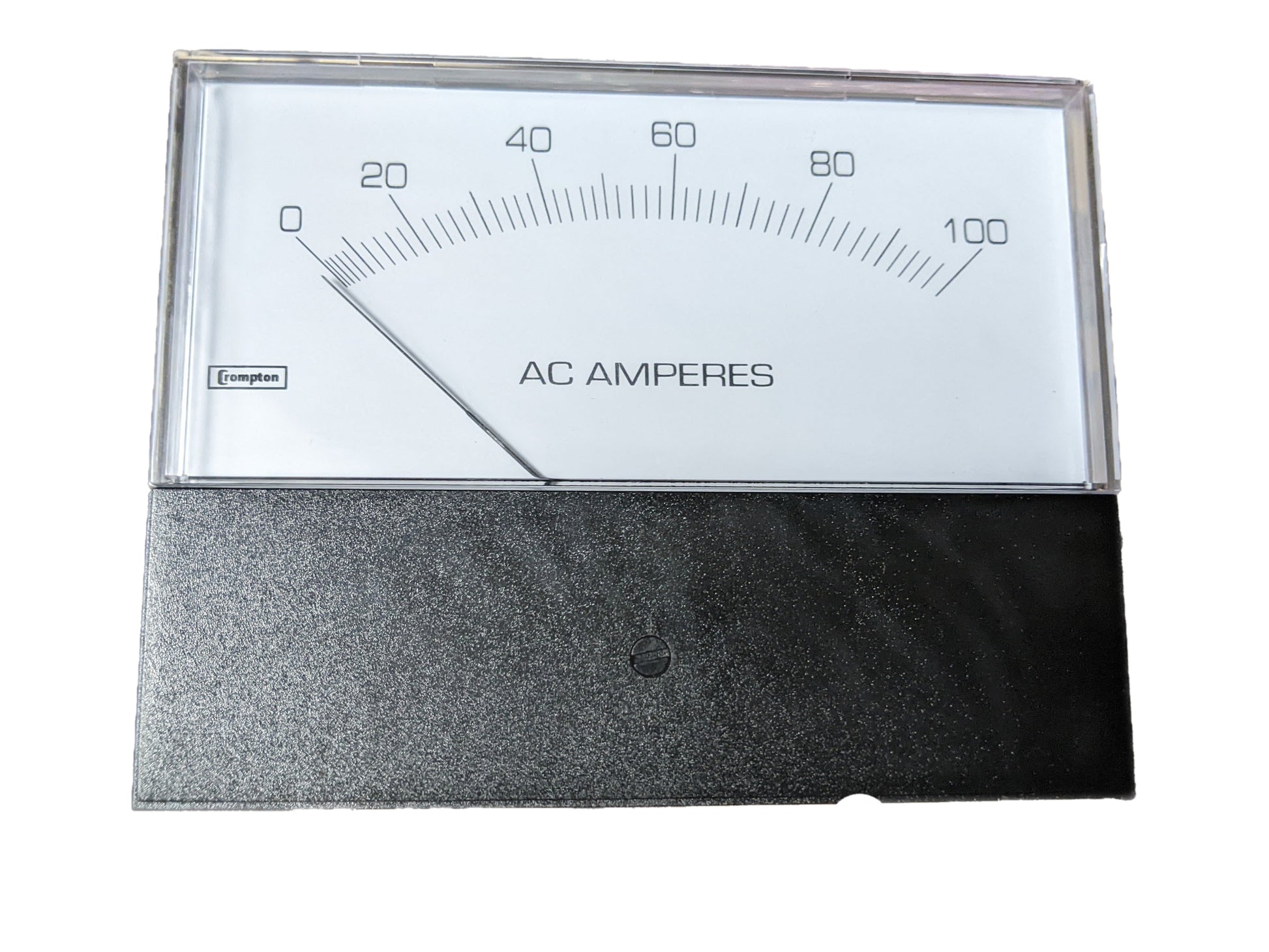

Crompton Analog Panel Meter Challenger Series 0-100A 364-02AA-LSPK-C7
Crompton Analog Panel Meter Challenger Series 0-100A 364-02AA-LSPK-C7
Crompton Analog Panel Meter Challenger Series 0-100A 364-02AA-LSPK-C7
Crompton Analog Panel Meter Challenger Series 0-100A 364-02AA-LSPK-C7
Crompton Instruments

Crompton Analog Panel Meter Challenger Series 0-100A 364-02AA-LSPK-C7

Regular price $89.00 $0.00 Unit price per

FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!

Condition: New

The Challenger range of analog panel meters offers accurate measurement. This innovative design features a detachable lower fascia plate, which allows the flexibility of either surface or window mounting. The fascia is simply unclipped to achieve the completely flush panel appearance of rear of panel window mounting.

These meters utilizing a high torque pivot and jewel movement. AC moving coil rectified meters provide 1.5% accuracy of the full scale value and feature a rear zero adjuster screw for tamper-proof installation. AC moving iron meters also provide 1.5% high accuracy and true RMS measurement.

Accuracy: ±1.5% of Full Scale
Meets ANSI C39.1
Replacements for Yokogawa Horizon and Stylist series

Specifications
  • Size (HxWxD) 4.18 x 4.73 x 1.83 inch
  • Barrel (cutout) 2.70 inch
  • Window (cutout) 2.36 x 5.05 inch
  • Scale Legend AC Amperes
  • Scale 0-100
  • Pointer Origin Zero Left
  • Input Signal 5 Amperes AC
  • Accuracy 1.5
  • Operating Temperature -32 to 104 Degrees F

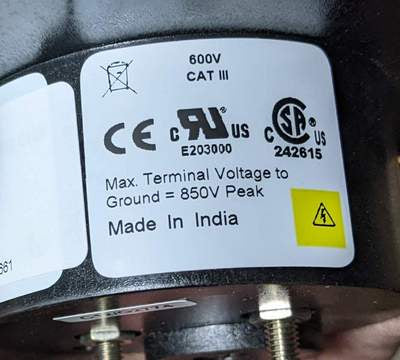

  • Approvals UL;cUL
