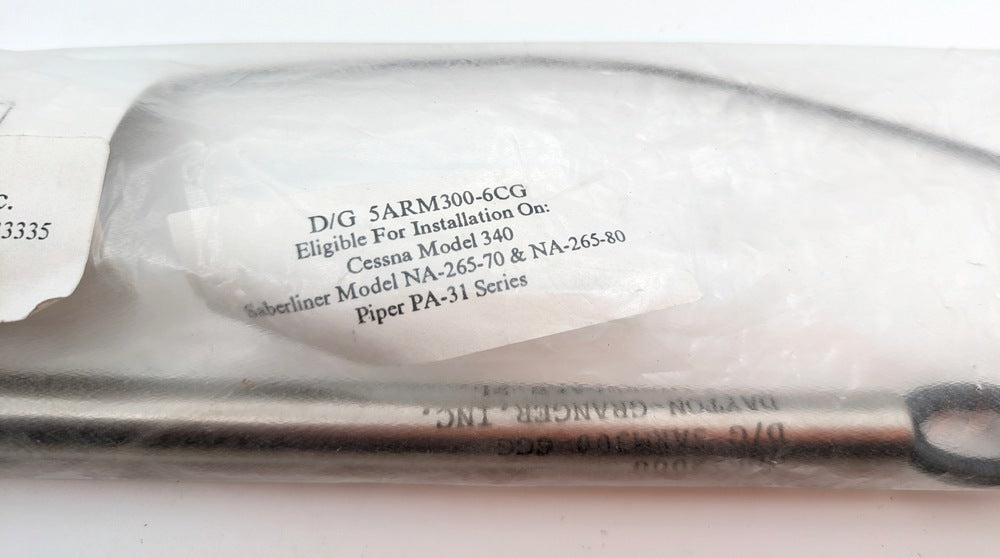

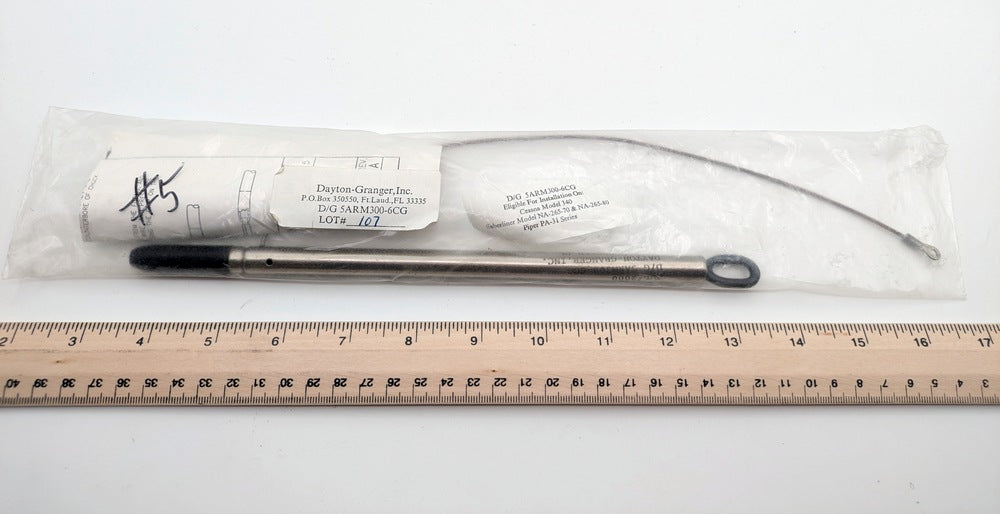

Dayton-Granger 5ARM300-6CG Used Genuine Original Non-Insulated Antenna Tension Unit with Ground Strap (Copy)
Dayton-Granger 5ARM300-6CG Used Genuine Original Non-Insulated Antenna Tension Unit with Ground Strap (Copy)
Regular price
$125.00 CAD
Regular price
Sale price
$125.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Ships from Toronto, Canada.
Condition: Used, clean condition pulled from a well maintained federal government facility. Guaranteed working, sold with our no-hassle 30-day return warranty.
The Dayton-Granger 5ARM300-6CG is a genuine original non-insulated quick-disconnect tension unit designed for HF antenna systems on high-performance aircraft. This component features a built-in ground strap and a precision compression spring housed in a stainless steel shell to maintain constant antenna wire tension and compensate for structural displacement during flight.
Key Data:
- Product Type: Non-Insulated Tension Unit
- Load Rating: 400 lbs (181.44 kg)
- Spring Travel: 2.5 inches (6.35 cm)
- Full Stroke Force: 60 lbs (27.22 kg)
- Starting Force: 8 lbs (3.63 kg)
- Voltage Rating: 4.2 kV peak
- Tube Diameter: 0.44 inches (1.12 cm)
- Length: 10.37 inches (26.34 cm)
- Weight: 3.5 oz (99.22 g)
