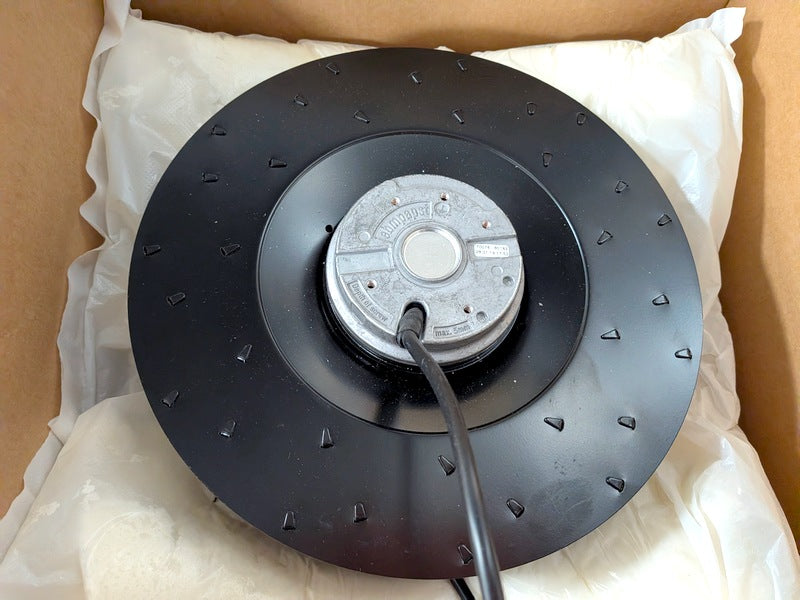

Ebm-Papst Sheathless Backward Curved Motorized AC Impeller R4E250-AL01-05
EBM Papst

Ebm-Papst Sheathless Backward Curved Motorized AC Impeller R4E250-AL01-05

Regular price $154.00 $0.00 Unit price per

Condition: Brand new.

Technical information

  • Description Sheathless centrifugal fan, spare parts fan
  • Voltage 1 ~ 230 VAC
  • Frequency 50 Hz
  • Power 40 W
  • Rated 0.18 A
  • RPM 1420 rpm
  • Condenser 1.5 µF
  • Operating temperature range -25… + 40 ° C
  • The direction of rotation clockwise
  • Engine type M4E068-CF
  • Engine model Voltage-adjustable external rotor synchronous motor
  • Motor protection / Protection Built-in thermal switch, automatic reset.
  • protection class IP44
  • Motor insulation class B
  • Laurel ball bearing
  • Material Impeller with backward curved blades, made of steel, black lacquered
  • Impeller B-wheel
  • Electrical connection Cable, axial, 450 mm
  • approvals CE
  • Measurement C 99 mm
  • Weight 2.2 kg
  • Item number R4E250AL0105
