Fafnir B540DD New Genuine Original Airframe Control Ball Bearing FS464 MS27646-40
Fafnir B540DD New Genuine Original Airframe Control Ball Bearing FS464 MS27646-40
Regular price
$95.00 CAD
Regular price
Sale price
$95.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Ships from Toronto, Canada.
Condition: New Old Stock. Note that the label shows a date of 03-17-90.

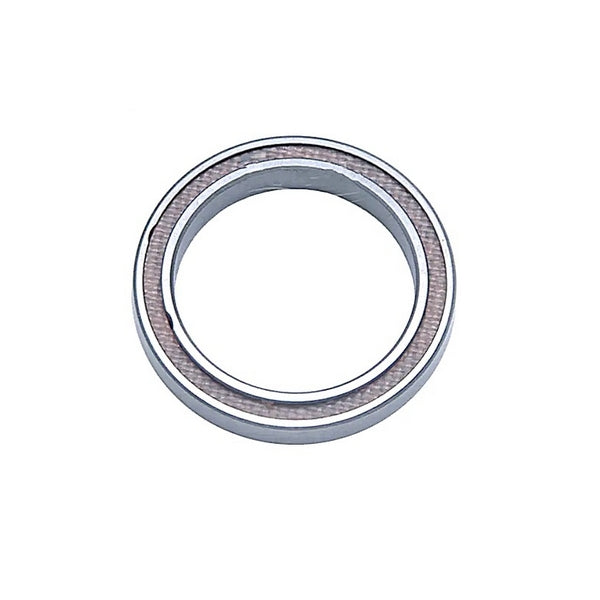

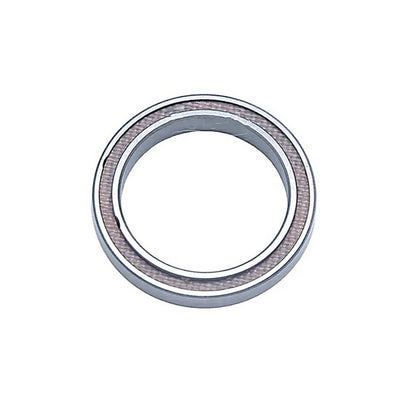

The Fafnir B540DD FS464 is a genuine original airframe control ball bearing designed for light-duty torque tube applications. The bearing features a double-sealed design with PTFE seals and is pre-lubricated with MIL-G-81322 grease to ensure reliable operation across extreme temperature ranges.
Key Data:
- Bore Diameter: 0.8750 in (22.23 mm)
- Outside Diameter: 1.3125 in (33.34 mm)
- Inner Ring Width: 0.2810 in (7.14 mm)
- Outer Ring Width: 0.2500 in (6.35 mm)
- Static Load Capacity: 4120 lbs (1868.8 kg)
- Dynamic Load Capacity: 1510 lbs (684.9 kg)
- Bearing Material: 52100 Chrome Steel
- Seal Type: Double PTFE Contact Seals
- Lubrication: MIL-PRF-81322 Grease
