Fafnir B542DD FS464 New Genuine Original Airframe Control Ball Bearing (MS27646-42)
Fafnir B542DD FS464 New Genuine Original Airframe Control Ball Bearing (MS27646-42)
Regular price
$58.00 CAD
Regular price
Sale price
$58.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability

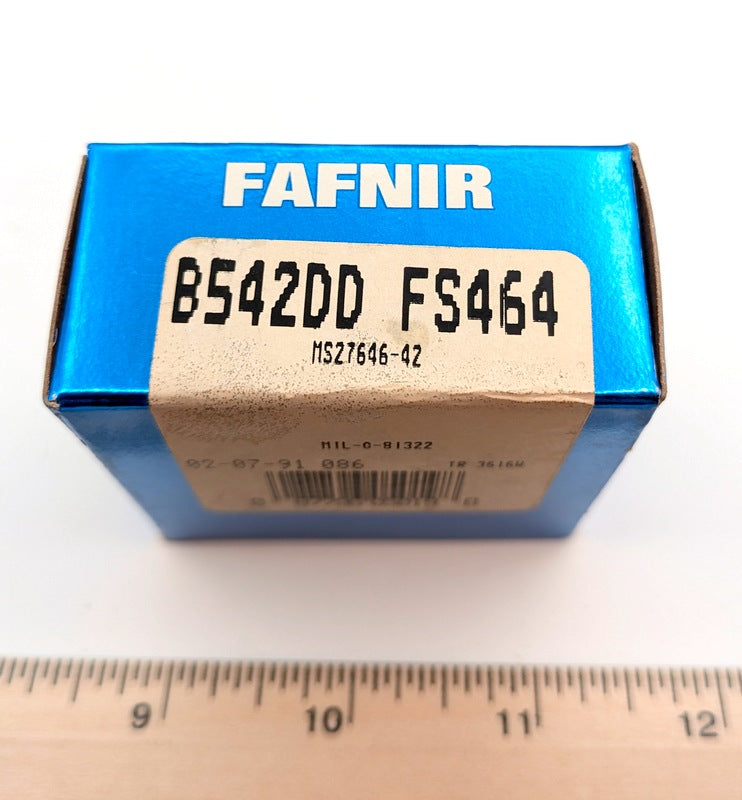

Condition: New Old Stock. Note that the label shows a date of 02-07-91.
Surplus old stock. NOT yellow-tagged and no FAA 8130-3, TCCA Form One, or CoC included. Sold as-is without traceability. Airworthiness and installation eligibility are the responsibility of the licensed installer.
The Fafnir B542DD FS464 is a genuine original airframe control ball bearing designed for light-duty torque tube applications. This double-sealed component is pre-lubricated with MIL-G-81322 grease and cadmium plated to provide reliable performance in aerospace environments across extreme temperature ranges.
Key Data:
The Fafnir B542DD FS464 is a genuine original airframe control ball bearing designed for light-duty torque tube applications. This double-sealed component is pre-lubricated with MIL-G-81322 grease and cadmium plated to provide reliable performance in aerospace environments across extreme temperature ranges.
Key Data:
- Bore Diameter: 1.3125 inches (33.34 mm)
- Outside Diameter: 1.7500 inches (44.45 mm)
- Inner Ring Width: 0.2810 inches (7.14 mm)
- Outer Ring Width: 0.2500 inches (6.35 mm)
- Static Load Capacity: 5950 lbs (2700 kg)
- Dynamic Load Capacity: 2130 lbs (966 kg)
- Bearing Material: 52100 Chrome Steel
- Seal Type: Double PTFE Contact Seals
- Weight: 0.09 lbs (0.04 kg)
