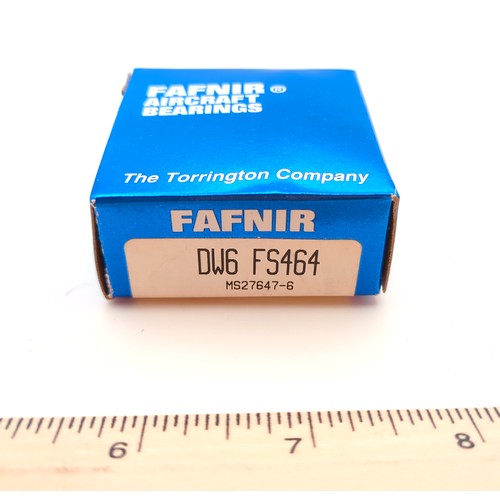

Fafnir DW6 Genuine Original Airframe Control Ball Bearing FS464 MS27647-6

Ships from Toronto, Canada.

Condition: New Old Stock. Please note that the box is dated 09-30-1994.

The Fafnir DW6 is a high-precision double-row airframe control ball bearing designed for intermediate duty in aircraft torque tubes and flight control systems. It features a full ball complement for maximum load capacity and is equipped with removable PTFE contact seals to ensure performance in harsh aerospace environments.

Key Data:

• Bore Diameter: 0.3750 in (9.525 mm)
• Outside Diameter: 1.0625 in (26.988 mm)
• Inner Ring Width: 1.1880 in (30.175 mm)
• Outer Ring Width: 1.0630 in (27.000 mm)
• Static Load Capacity: 8440 lbs (3828.32 kg)
• Dynamic Load Capacity: 3740 lbs (1696.44 kg)
• Bearing Style: Double Row Full Complement
• Seal Type: Double Removable PTFE Contact Seals
• Lubrication: MIL-G-81322 Grease (FS464)
