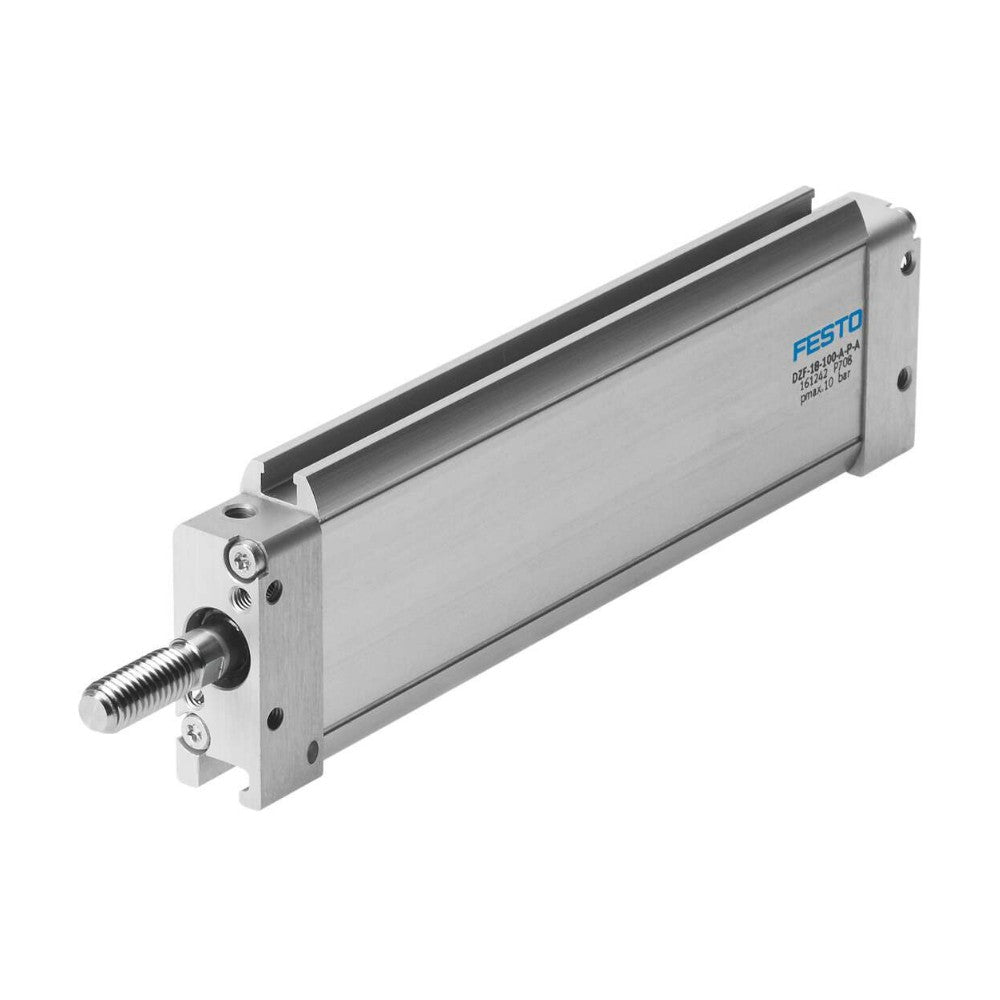

Festo DZF-18-10-A-P-A Flat Cylinder Solenoid (161237 K608)
Festo

Festo DZF-18-10-A-P-A Flat Cylinder Solenoid (161237 K608)

Regular price $129.00 $0.00 Unit price per

FREE SHIPPING INCLUDED!

Condition: Used, cleaned, guaranteed working. Missing original box, will ship in generic packaging. Sold with our "no-hassle" 30-day return warranty and 1-year product warranty.

Specifications
  • Stroke 10 mm
  • Piston diameter 18 mm Equivalent diameter
  • Max. angle of rotation of the piston rod +/- 1.2 deg
  • Type code DZF
  • Cushioning Elastic cushioning rings/pads at both ends
  • Mounting position Any
  • Mode of operation Double-acting
  • Design Piston Piston rod
  • Position sensing For proximity sensor
  • Symbol 00991217
  • Protection against torsion/guide Oval piston
  • Operating pressure 1 bar ... 10 bar
  • Operating pressure 0.1 MPa ... 1 MPa
  • Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC) 2 - Moderate corrosion stress
  • Ambient temperature -20 °C ... 80 °C
  • Max. torque for protection against rotation 0.2 Nm
  • Theoretical force at 6 bar, retracting 123 N
  • Theoretical force at 6 bar, advancing 153 N
  • Moving mass at 0 mm stroke 24 g
  • Additional weight per 10 mm stroke 13 g
  • Basic weight with 0 mm stroke 107 g
  • Additional moving mass per 10 mm stroke 4 g
  • Pneumatic connection M5
  • Cover material Wrought aluminum alloy
  • Seals material NBR, TPE-U(PU)
  • Housing material Aluminum, Smooth anodized
  • Piston rod material High-alloy stainless steel
