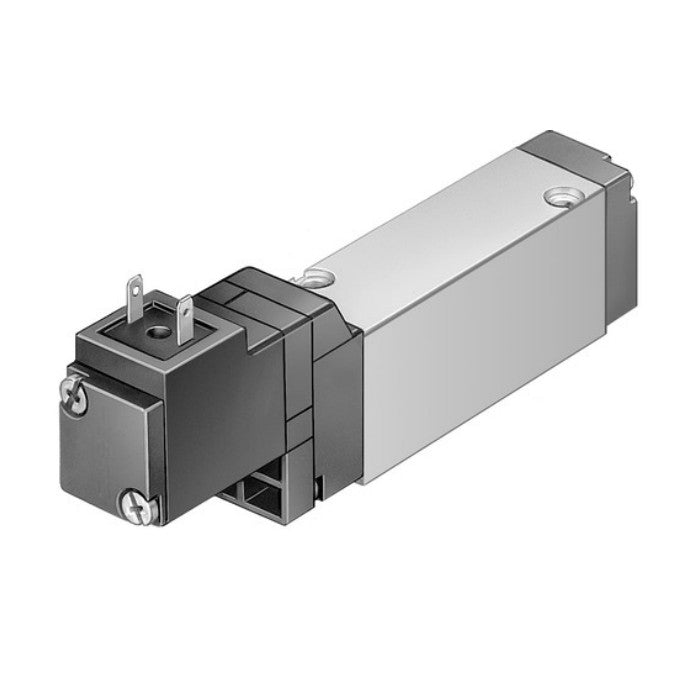

Festo MEH-3/2-5, 0-B Solenoid Valve (173125)
Festo

Festo MEH-3/2-5, 0-B Solenoid Valve (173125)

Regular price Cdn $99.00 Cdn $0.00 Unit price per

FREE SHIPPING INCLUDED!

Condition: Used, very good condition. Missing original box, will ship in generic packaging. Sold with our "no-hassle" 30-day return warranty and 1 year-product warranty.

Solenoid valve MEH-3/2-5,0-B Midi Pneumatic, with solenoid coil and manual override, without socket. Valve function=3/2 closed, monostable, Type of actuation=electrical, Width=17,8 mm, Standard nominal flow rate=700 l/min, Operating pressure=2 - 8 bar

Specifications
  • Valve function 3/2 closed monostable
  • Actuation type Electrical
  • Build.width [mm] 17.8
  • Normal nominal flow [l/min] 700
  • Operating pressure [bar] 2 to 8
  • Construction set up Piston pusher
  • Reset mode Mechanical spring
  • Protection category IP65
  • Permission c UL us - Recognized (OL)
  • Nominal width [mm] 5
  • Pitch dimension [mm] 18
  • Exhaust function Can be throttled
  • Sealing principle Soft
  • Installation position arbitrary
  • Hand assist actuation With Accessories ratcheting
  • Control type pilot operated
  • Control air supply Internal
  • Flow direction Not reversible
  • Coil characteristic value 24 V DC: 1,5 W
  • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
