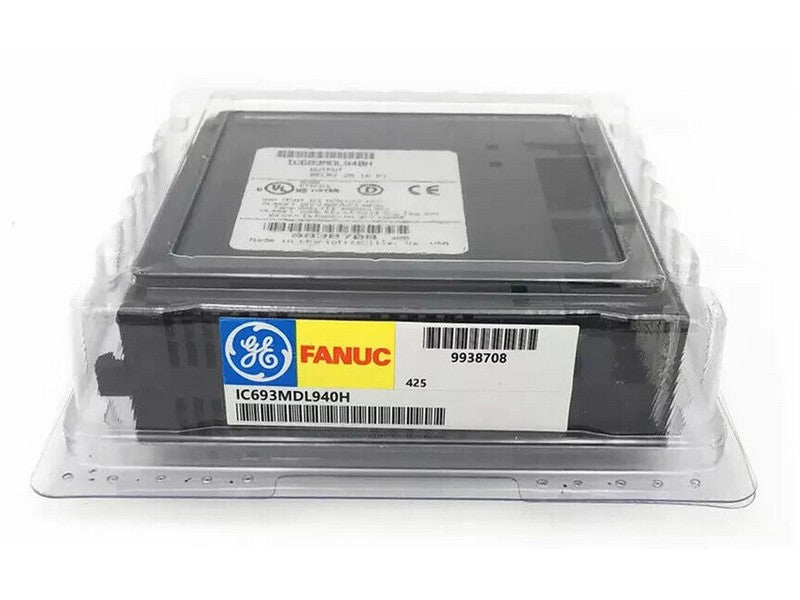

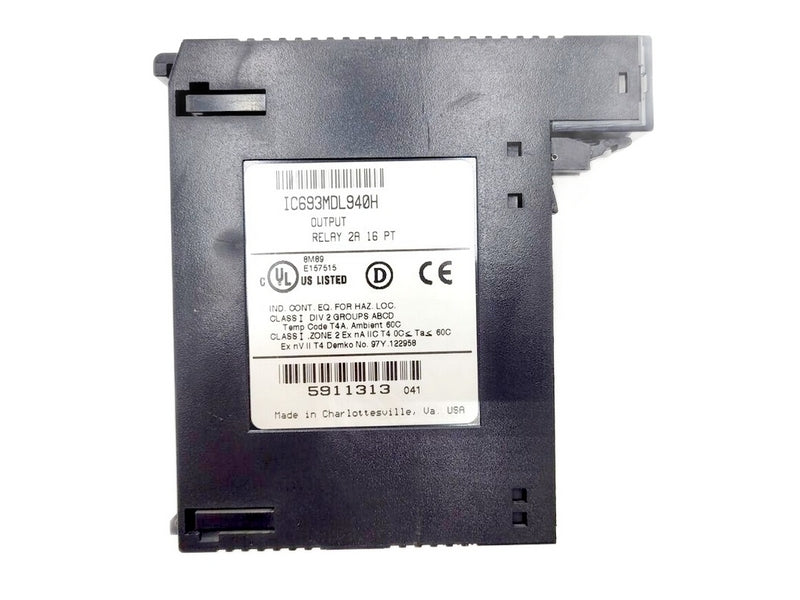

GE Fanuc IC693MDL940H New Genuine Original Relay Output Module
GE Fanuc IC693MDL940H New Genuine Original Relay Output Module
Regular price
$367.00 CAD
Regular price
Sale price
$367.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: NEW
The GE Fanuc IC693MDL940H is a 16-point relay output module for Series 90-30 PLC systems. It provides high-reliability switching for AC and DC loads including solenoids, indicators, and motor starters across four isolated output groups.
Key Data:
The GE Fanuc IC693MDL940H is a 16-point relay output module for Series 90-30 PLC systems. It provides high-reliability switching for AC and DC loads including solenoids, indicators, and motor starters across four isolated output groups.
Key Data:
- Output Configuration: 16 relay points divided into 4 isolated groups of 4 outputs each
- Operating Voltage Range: 5 to 30 VDC or 5 to 250 VAC at 50/60 Hz
- Maximum Output Load Current: 2 Amps per point and 4 Amps maximum per common
- Module Response Time: 15 milliseconds maximum for turn-on and turn-off
- Physical Dimensions: Height 5.12 inches (130 mm) by Width 1.57 inches (40 mm) by Depth 5.59 inches (142 mm)
