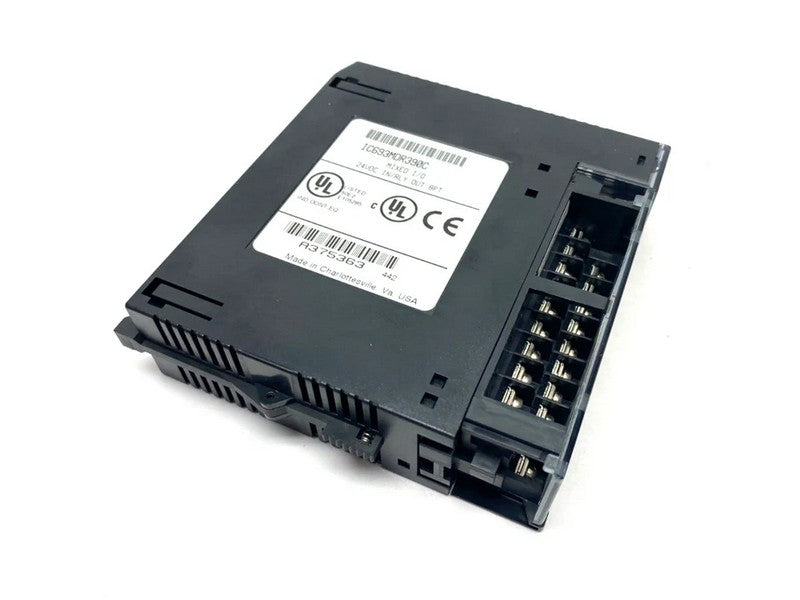

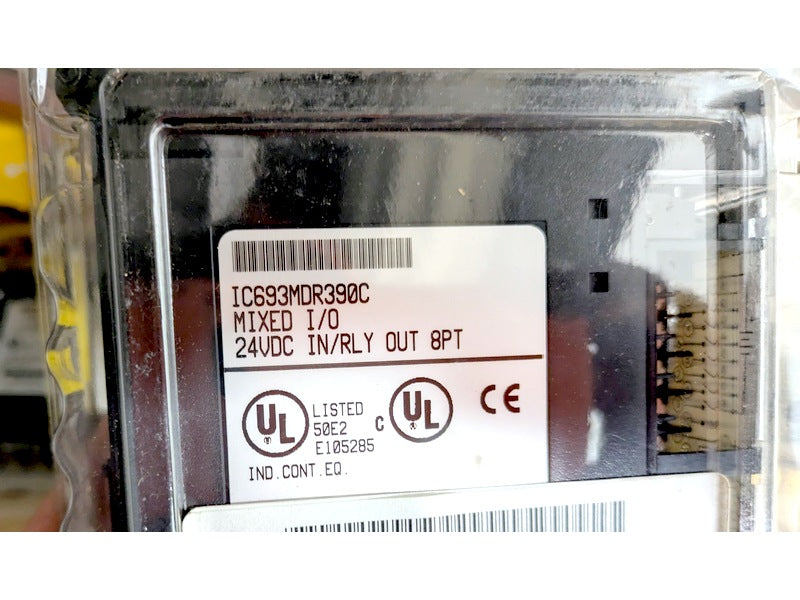

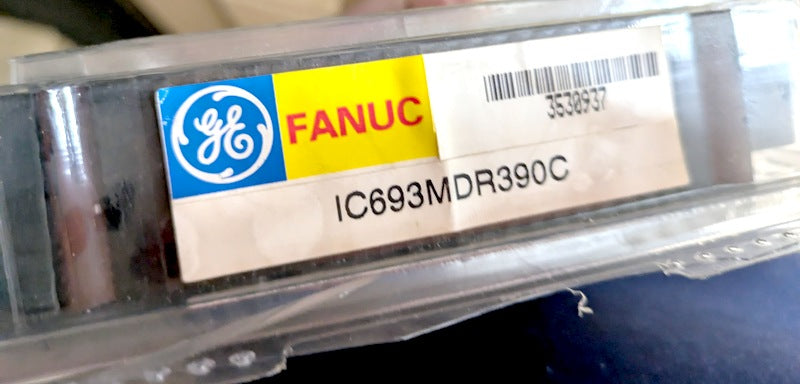

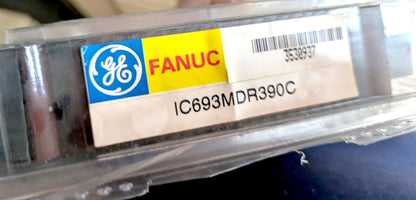

GE Fanuc IC693MDR390C New Genuine Original 24VDC Input/Relay Output Module
GE Fanuc IC693MDR390C New Genuine Original 24VDC Input/Relay Output Module
Regular price
$387.00 CAD
Regular price
Sale price
$387.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: NEW
The GE Fanuc IC693MDR390C is a Series 90-30 combination discrete I/O module featuring 8 positive/negative logic 24 VDC inputs and 8 normally-open relay outputs with 2 Amp switching capacity for industrial PLC system control.
Key Data:
The GE Fanuc IC693MDR390C is a Series 90-30 combination discrete I/O module featuring 8 positive/negative logic 24 VDC inputs and 8 normally-open relay outputs with 2 Amp switching capacity for industrial PLC system control.
Key Data:
- Module Configuration 8 discrete input channels and 8 normally open relay output channels
- Input Signal Rating 24 VDC at 7.5 mA per point across one group of 8 inputs
- Output Contact Switching 2 Amps maximum per output circuit with operating range 5 to 30 VDC or 5 to 250 VAC 50/60 Hz
- Operating Temperature Range 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C)
- Electrical Isolation 1500 V RMS between field and logic side and 500 V RMS between groups
