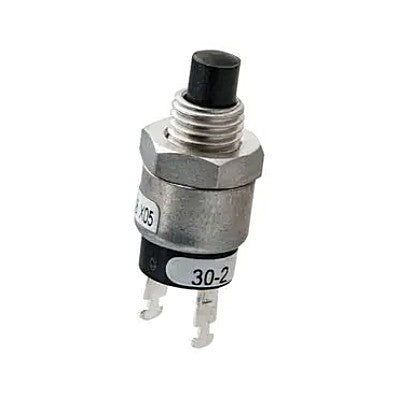

Grayhill 30-2 New Genuine Original Pushbutton Switch, 6.75mm SPST-NC, Momentary, Round Plunger, Black
Grayhill 30-2 New Genuine Original Pushbutton Switch, 6.75mm SPST-NC, Momentary, Round Plunger, Black
Regular price
$25.00 CAD
Regular price
Sale price
$25.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: NEW
The Grayhill 30-2 is a high-reliability, momentary SPST-NC pushbutton switch featuring a black round plunger. Designed for panel mounting with solder lug terminals, it offers a long electrical life of 1,000,000 cycles for industrial and commercial control applications.
Key Data:
The Grayhill 30-2 is a high-reliability, momentary SPST-NC pushbutton switch featuring a black round plunger. Designed for panel mounting with solder lug terminals, it offers a long electrical life of 1,000,000 cycles for industrial and commercial control applications.
Key Data:
- Circuitry: SPST-NC (Normally Closed)
- Switch Function: Momentary / On-(Off)
- Rating: 1 Amp at 115 VAC
- Mounting: 6.75 mm Diameter Panel Mount
- Electrical Life: 1,000,000 Operations
- 25mΩ Maximum on a new switch contact resistance
- 1000MΩ Minimum insulation resistance
- -40 to 85°C Operating temperature range
