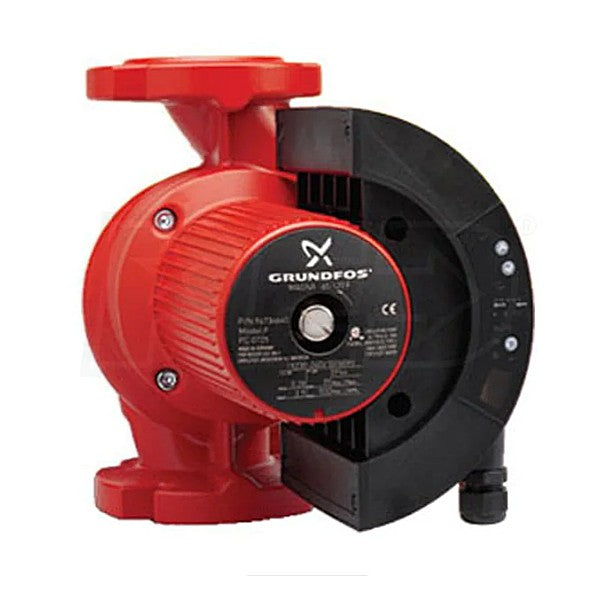

Grundfos 98071395 MAGNA 32-60 F Cast Iron Flange Mount Circulator Pump 230V, 1/6 HP
Grundfos

Grundfos 98071395 MAGNA 32-60 F Cast Iron Flange Mount Circulator Pump 230V, 1/6 HP

Regular price $899.00 $0.00 Unit price per

FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!

Condition: New

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The pumped liquid lubricates the bearings. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible.

The MAGNA variable-speed wet rotor circulator from Grundfos is powerful, reliable, intelligent, and energy efficient. MAGNA delivers plenty of edge by utilizing a permanent-magnet rotor - a revolutionary design pioneered by Grundfos. It's easy to install, simple to operate, and an excellent choice for replacement applications. With these features and more, MAGNA is the smart choice for optimized pump efficiency.

Features
  • Wet-rotor technology is quieter and maintenance-free
  • Simple interface control makes operation easy
  • Delivers performance with up to 80% less energy than standard circulators
Specifications
  • Pipe Size: 1-1/2"
  • Type: Var. Speed Pump
  • Voltage: 230v
  • Max Flow (GPM): 39
  • Max Pressure (PSI): 203
  • Max Head (Ft): 19.7
  • Frequency: 60 Hz
  • Temperature Range (F): 32°F - 104°F
  • Connection Type: Flanged x Flanged
  • Material: Cast Iron
  • Connection Size: 1"
  • Horse Power: 1/6

Installation Manual, click here
