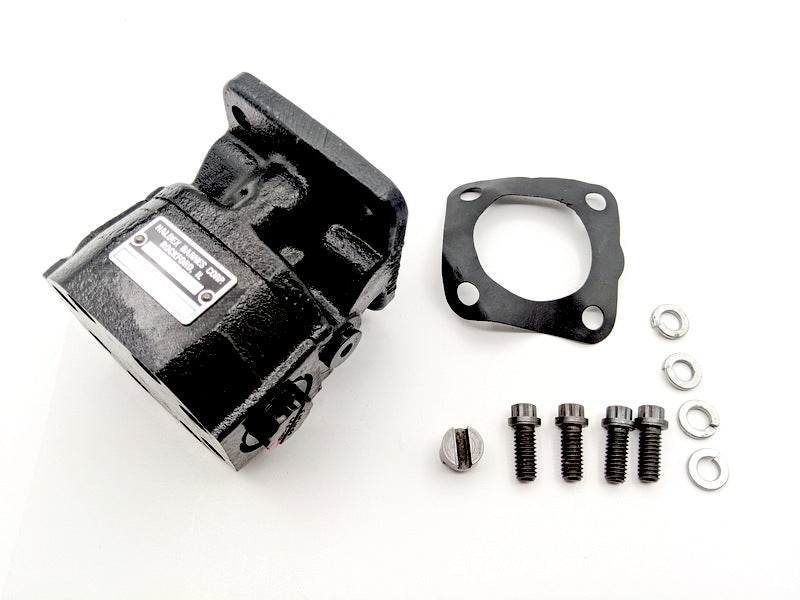

Haldex/Barnes G1116C1A300N00 GC Gear Pump Assembly (Part 1300088)
Haldex/Barnes G1116C1A300N00 GC Gear Pump Assembly (Part 1300088)
Haldex/Barnes G1116C1A300N00 GC Gear Pump Assembly (Part 1300088)
Haldex Barnes Hydraulics

Haldex/Barnes G1116C1A300N00 GC Gear Pump Assembly (Part 1300088)

$699.00 $0.00
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Ships from Toronto, Canada.
Condition: New Old Stock. Missing original packaging. Item appears new and unused. See photos of actual item. Sold with our no-hassle 30-day return warranty.
Complete GC-series hydraulic gear pump from Concentric (Haldex/Barnes), delivering reliable high-pressure performance in both forward and reverse operation—a rugged choice for industrial, agricultural, and construction applications.

Key Data:

  • Displacement: 0.258 in³ / 4.23 cc per revolution
  • Gear Face Width: 0.500 in
  • Flow Rate: ~2 gpm @ 1800 rpm; ~4 gpm @ 3600 rpm
  • Max Pressure: Continuous 2300 psi (159 bar); Intermittent up to 4000 psi (275 bar)
  • Sealing: Buna-N standard; Viton or high-pressure options available
  • Port Configuration: SAE side ports, 9/16-18 inlet and outlet
  • Rotation: Birotational (runs both directions)
  • Weight & Size: Approximately 5 lbs; compact body for versatile mounting
