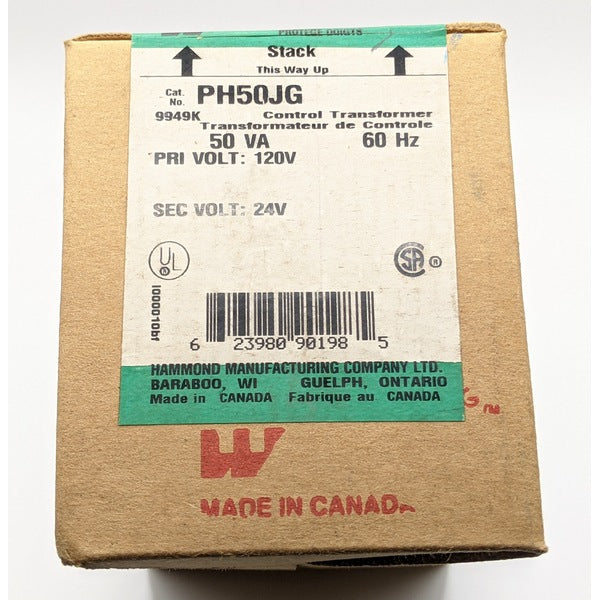

Hammond PH50JG New Genuine Original HPS Imperator Industrial Control Transformer

Ships from Toronto, Canada.

Condition: NEW

The Hammond PH50JG is a high-quality 50VA industrial control transformer from the HPS Imperator series, specifically designed for high-inrush applications such as solenoids, contactors, and relays. It features a 600V primary and a 24V secondary, making it an essential component for industrial panels operating on standard 600V power systems. The unit is fully encapsulated in an injection-molded cover to protect the copper windings and terminations from moisture, dust, and other industrial contaminants.

Key Data:

• Power Rating: 50 VA
• Primary Voltage: 600 V
• Secondary Voltage: 24 V
• Frequency: 60 Hz
• Insulation Class: 105 degrees Celsius (221 degrees Fahrenheit)
• Temperature Rise: 55 degrees Celsius (131 degrees Fahrenheit)
• Dimensions: 3.00 x 3.00 x 3.94 inches (76.2 x 76.2 x 100.08 mm)
• Weight: 2.36 lbs (1.07 kg)
• Certification: cULus Listed and CE Marked
