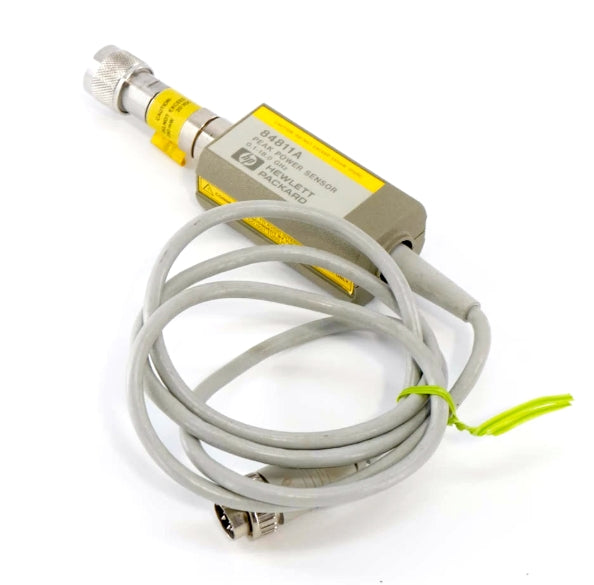

Hewlett-Packard 84811A Peak Power Sensor, Used
Hewlett-Packard 84811A Peak Power Sensor, Used
Regular price
$395.00 CAD
Regular price
Sale price
$395.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Ships from Toronto, Canada.
Condition: Used, pulled from a well maintained federal government facility. Guaranteed working, sold with our no-hassle 30-day return warranty. Photo is a representative photo of a new unit, our unit is used.
The HP 84811A is a high-performance peak power sensor designed to measure the peak power of pulsed RF signals from 100 MHz to 18 GHz. It is used in conjunction with HP 8900C and 8900D peak power meters to provide accurate measurements for radar and pulsed communication systems.
Key Data:
- Frequency Range: 100 MHz to 18 GHz
- Power Measurement Range: 0 to +20 dBm (1.0 mW to 100 mW)
- Maximum Peak Power: +24 dBm (250 mW)
- SWR 100 MHz to 12 GHz: 1.5 maximum
- SWR 12 GHz to 18 GHz: 2.0 maximum
- Calibration Accuracy: plus or minus 0.7 dB to 1.0 dB depending on frequency
- Connector Type: Type N Male
- Cable Length: 4.0 ft (1.22 m)
