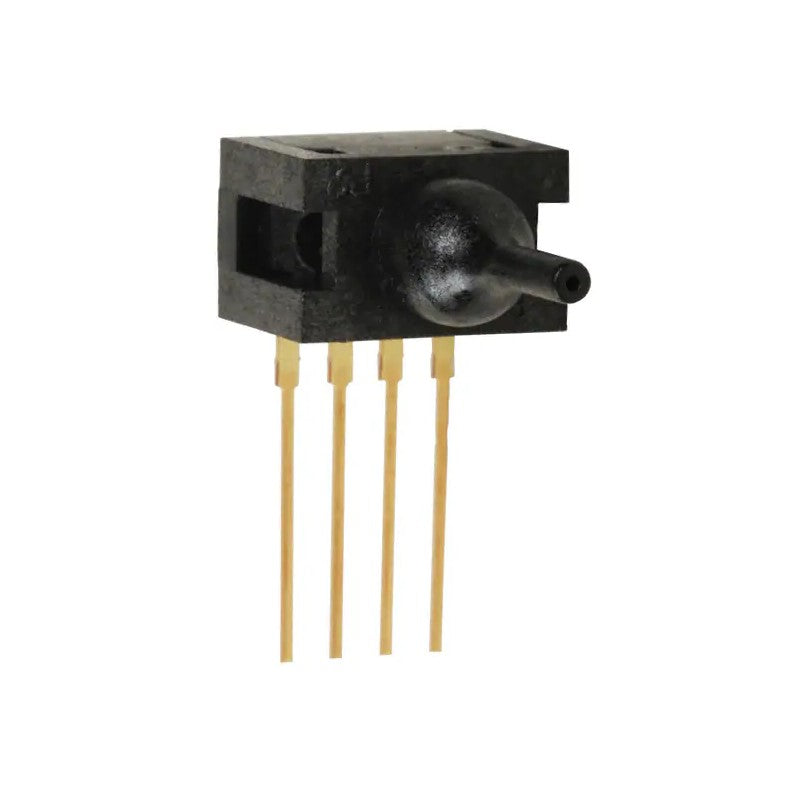

Honeywell 26PCCFJ6G Board Mount Miniature Pressure Sensor 15psi

Regular price $49.00 $0.00 Unit price per

Condition: New

The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media. These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is proportional to the input pressure.

These sensors can accommodate a variety of wet and dry media that are compatible with polyphthalamide (PPA) plastics and are RoHS compliant. They are designed and manufactured according to ISO 9001 standards.

Specifications
  • Operating Pressure ±15PSI (±103.42kPa)
  • Output Type Wheatstone Bridge
  • Output 0 mV ~ 100 mV (10V)
  • Accuracy ±0.5%
  • Voltage - Supply 2.5V ~ 16V

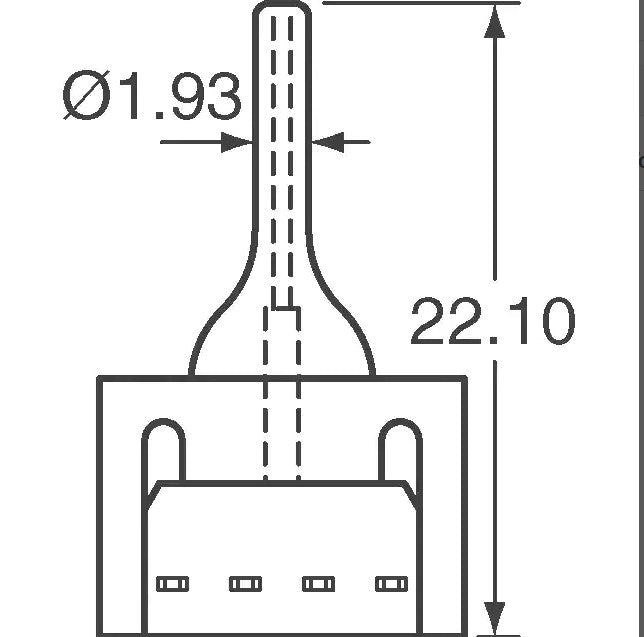

  • Port Size Male - 0.07"" (1.78mm) Tube
  • Port Style Needle
  • Temperature Compensated
  • Termination Style PC Pin
  • Maximum Pressure ±45PSI (±310.26kPa)
  • Operating Temperature -40°C ~ 85°C
  • Package / Case 4-SIP Module
