Low stock: 1 left

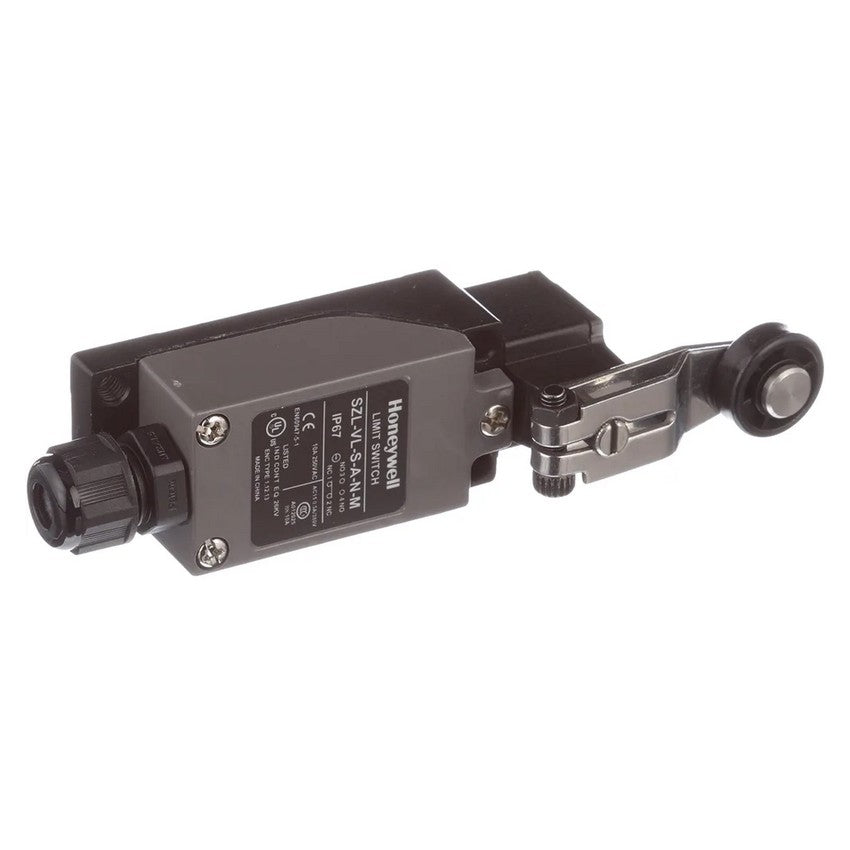

Honeywell SZL-VL-S-A-N-M Limit Switch
Honeywell SZL-VL-S-A-N-M Limit Switch
Regular price
$48.00 CAD
Regular price
Sale price
$48.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: Used, clean condition pulled from a well maintained federal government facility. Guaranteed working, sold with our no-hassle 30-day return warranty.
The Honeywell SZL-VL-S-A-N-M is a miniature industrial limit switch featuring a side rotary lever with nylon roller, SPDT snap-action contacts, IP67 environmental sealing, and modular die-cast metal construction designed for space-restricted industrial applications.
Key Data:
The Honeywell SZL-VL-S-A-N-M is a miniature industrial limit switch featuring a side rotary lever with nylon roller, SPDT snap-action contacts, IP67 environmental sealing, and modular die-cast metal construction designed for space-restricted industrial applications.
Key Data:
- Operating temperature range -4 deg F to 158 deg F (-20 deg C to 70 deg C)
- Maximum operating torque 1.59 in-lb (18 Ncm)
- Nylon roller dimensions 0.71 in diameter by 0.25 in width (18 mm diameter by 6.5 mm width)
- Ingress protection rating IP67, NEMA 1, 12, 13
- Electrical load rating AC-15 0.5 A at 380 VAC, DC-13 0.05 A at 220 VDC
