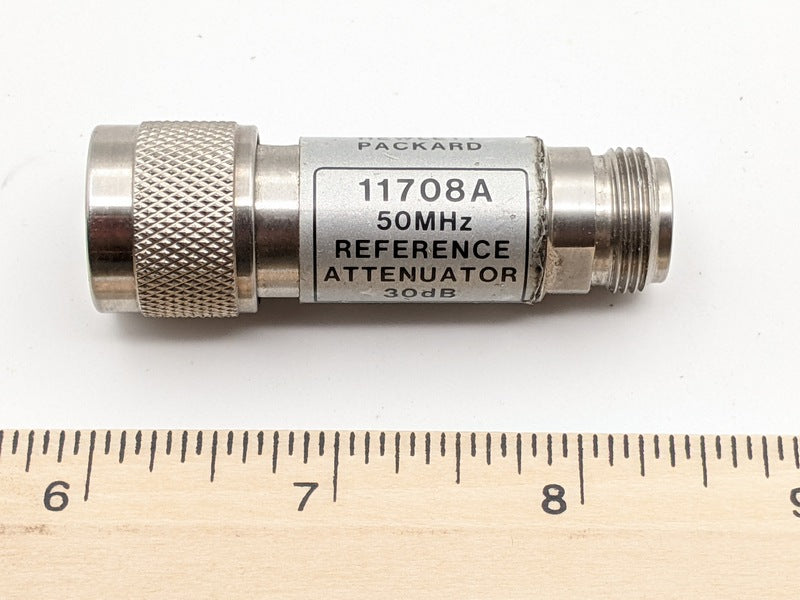

HP Agilent Keysight 11708A Attenuator 30 dB
HP Agilent Keysight 11708A Attenuator 30 dB
Regular price
$125.00 CAD
Regular price
Sale price
$125.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: Used, clean condition pulled from a well maintained federal government facility. See photo of actual unit in stock. Guaranteed working, sold with our no-hassle 30-day return warranty.
The HP 11708A is a precision 30 dB reference attenuator designed for the calibration of 8480 series power sensors with the power meter 0 dBm 50 MHz reference. This high-accuracy pad provides a 1 microwatt reference level for D-suffix sensors to ensure precise measurement results.
Key Data:
The HP 11708A is a precision 30 dB reference attenuator designed for the calibration of 8480 series power sensors with the power meter 0 dBm 50 MHz reference. This high-accuracy pad provides a 1 microwatt reference level for D-suffix sensors to ensure precise measurement results.
Key Data:
- Attenuation: 30 dB
- Attenuation Accuracy: +/- 0.05 dB at 50 MHz
- Maximum SWR: 1.05 at 50 MHz
- Operating Frequency: 50 MHz
- RF Impedance: 50 ohms
- Connectors: Type-N Male and Type-N Female
- Dimensions: 0.79 in diameter by 2.4 in length (20 mm by 60 mm)
- Application: Meter Calibration
