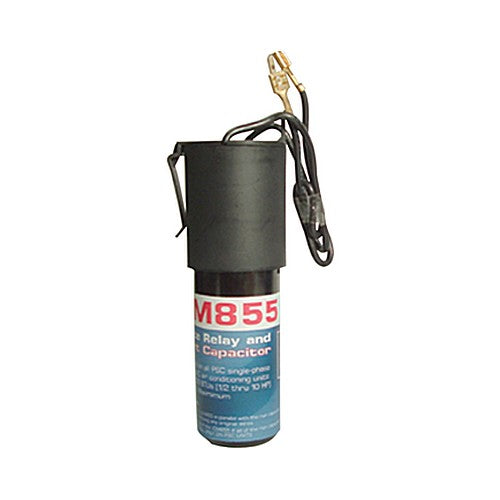

ICM Controls ICM855 Motor Hard Start, PSC Single-Phase Motor Starter

A robust and reliable hard start device designed for single-phase motors. It uses Positive Temperature Coefficient (PTC) technology to increase starting torque by up to 300%, ensuring reliable motor startup and extending motor life.

Key Data:

• Voltage: 115-288 VAC
• Capacitor: 43-52 Mfd., 330V
• Increases starting torque up to 300%
• Range: 1/2 to 10 HP (up to 1.5 HP recommended)
• Positive Temperature Coefficient (PTC) Technology
• Easy to install with 2-wires, clips or screws

Notes

• Connect the two wires from the ICM855 in parallel with the run capacitor (one wire each side) without removing any original wires.
• Use special "Piggy Back" terminal of the ICM855 if all of the run capacitor terials are being used.
• Install only on PSC units equipped with run capacitor.
