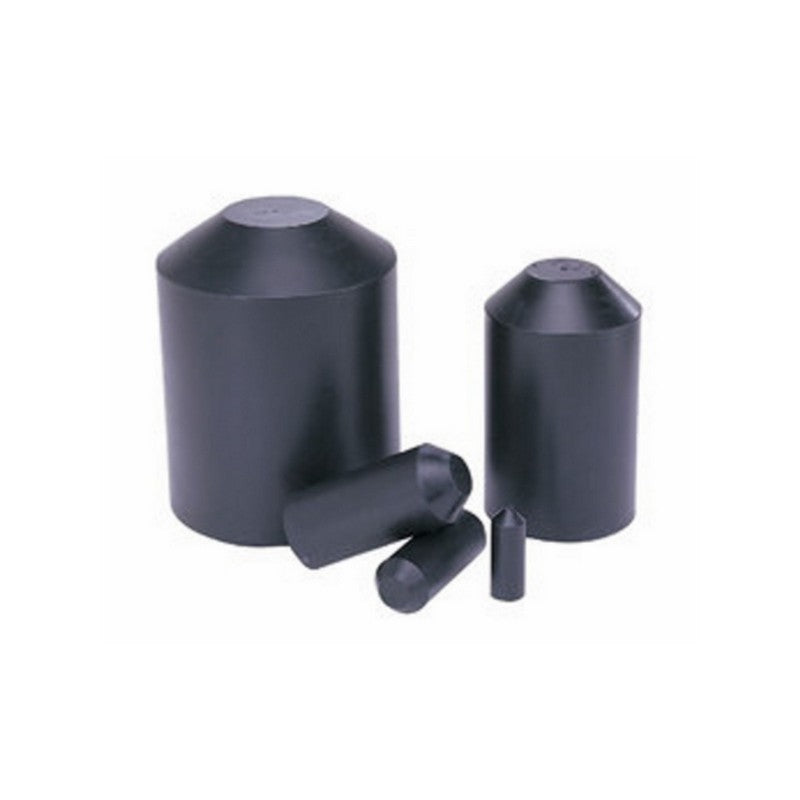

Ideal Thermo-Shrink 46-384 Medium Wall 4.5 inch Heat Shrink End Cap, 500-1,000 MCM
Ideal Thermo-Shrink

Ideal Thermo-Shrink 46-384 Medium Wall 4.5 inch Heat Shrink End Cap, 500-1,000 MCM

Regular price Cdn $24.95 Cdn $0.00 Unit price per

Condition: New.

Features
  • Adhesive liner provides complete environmental protection and insulation
  • Cable range 2000 to 2500 kcmil
  • Coated with hot melt adhesive to ensure environment seal
  • Creates a watertight seal to protect ends of power and control cords
  • Elongation at break ASTM D 638, less than 400%
  • Elongation of break after aging less than 300 PCT 150 deg C, 168 HR
  • Fits easily over end of cable protect power cables up to 1000 V and telecommunication cable
  • Nominal recovered 1.38 in ID (maximum), expanded 2.95 in ID (minimum)
  • Protect cable ends during storage
  • Protects against oxidation, ozone, UV radiation etc
  • Provide watertight seal, resist corrosion, oils and chemicals
  • Rated for 600/1000 VAC, 90 deg C continuous use
  • Recommended for both open air and underground power distribution cables with PVC, lead or XLPE sheaths
  • Shrink temperature of 120 deg C
  • Thermally stabilized cross linked polyolefin, coated with specially designed hot melt adhesive
Specifications
  • Thickness 0.138
  • Type Medium-Wall
  • UNSPSC 39121723
  • Voltage Rating 600/1000

For data sheet, click here.
