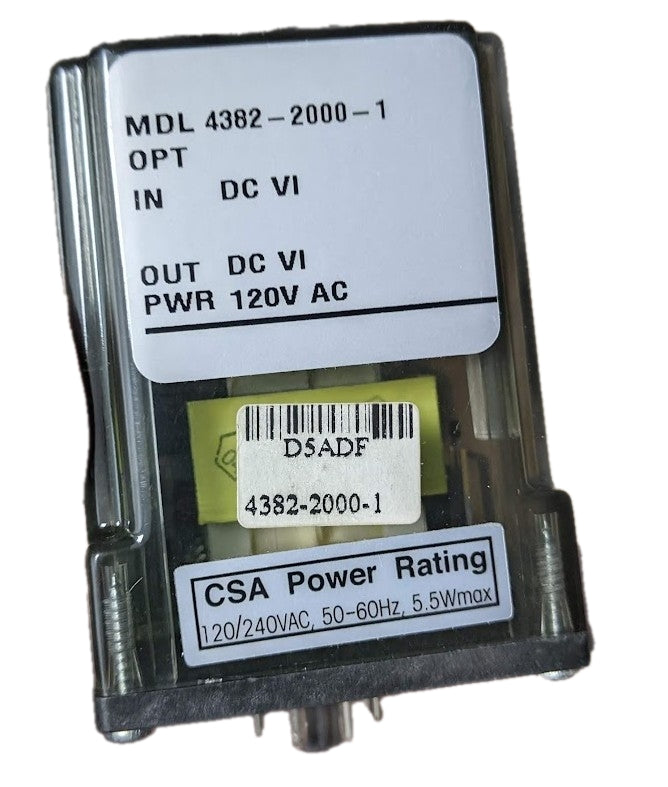

Invensys Action Pak Instruments 4382-2000-1 DC Isolating Conditioner
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Condition: Used, "like new" condition with original instruction sheet. Sold with our "no-hassle" 30-day return warranty.
The 4382-2000-1 is a Field Configurable Isolator offers wide ranging input and output capability for scaling and transmitting analog DC signals. It will accept input voltage spans from 20mV up to 100volts, as well as input current spans from 2mA to 100mA. This is a 3-port industrial isolator -- the output is optically isolated from its input up to 1500 VDC. The ASIC-based I/O channel is independently transformer isolated from the selectable 120/240VAC power supply.
- Eliminates ground loops
- 50% Adjustable field configurable input ranges
- Four field configurable output ranges
- Plug-in installation
- CSA certified, UL recognized
