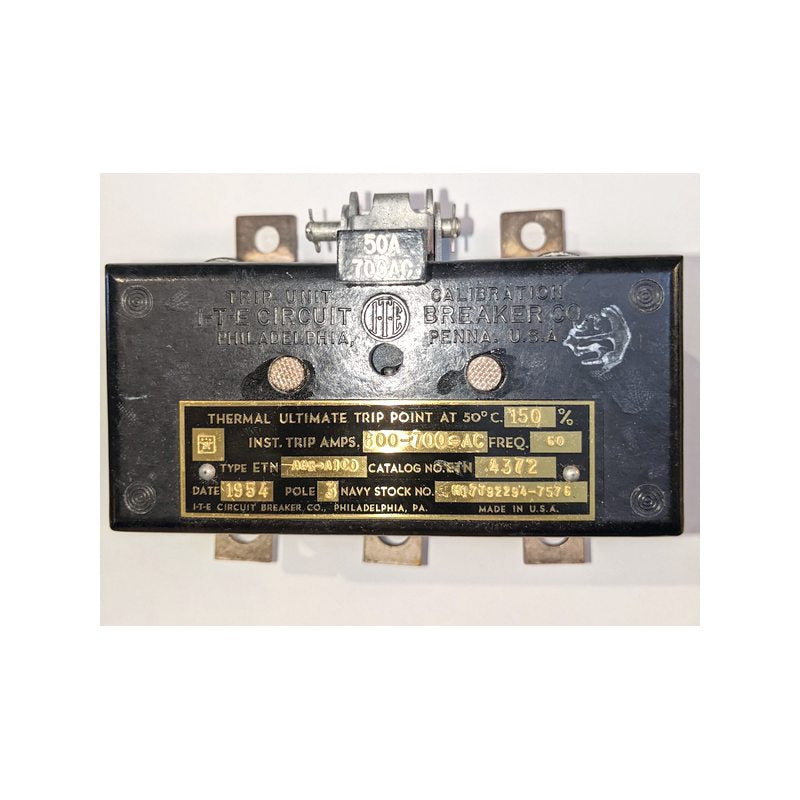

ITE ETN-4372 AQB-A100 3-Pole 100A 700VAC Circuit Breaker (NSN: 5925-00-248-1444)

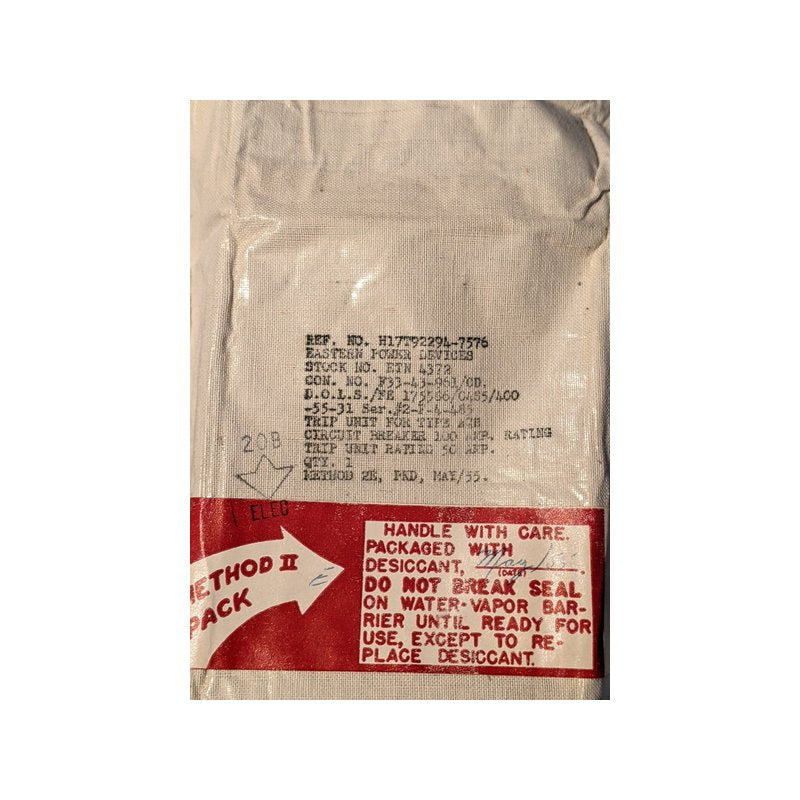

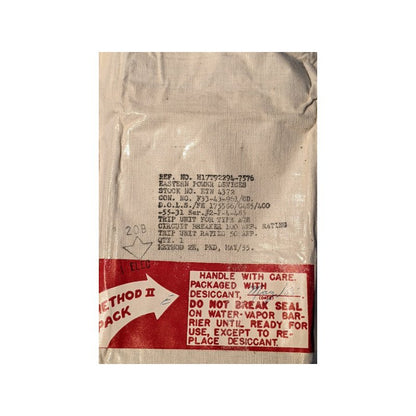

Condition: NEW Old Stock. Still sealed in its original packaging from 1954!

The ITE ETN-4372 AQB-A100 is a heavy-duty Navy-grade molded case circuit breaker. Designed for high-shock marine environments, this 3-pole, 100-amp unit provides reliable overcurrent protection for shipboard electrical systems and 700VAC distribution networks.

Specifications

• Body Style Rectangular dimensional envelope
• Overall Length 4.594 inches
• Overall Height 3.531 inches
• Overall Width 3.844 inches
• Pole Quantity 3
• Mounting Facility Type And Quantity 6 terminal
• Maximum Continuous Load Current Rating Per Pole 50.0 A
• Operating Voltage Type And Rating Per Pole In Volts 500.0 VAC
• Circuit Protection Type Overcurrent
• Trip Release Method Thermal-magnetic
• Trip Release Characteristic Instantaneous all locations and time delay
• Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent 150%
• Trip Delay Time In Seconds Per Rated Continuous Current 7.4 at 200% and 25.0 at 200%
• Trip Release Ambient Tempurature Rating 50.0 degrees celsius
• Frequency 60 Hz
• FSC 5925 Circuit Breakers

• NIIN 002481444
• NSN 5925002481444

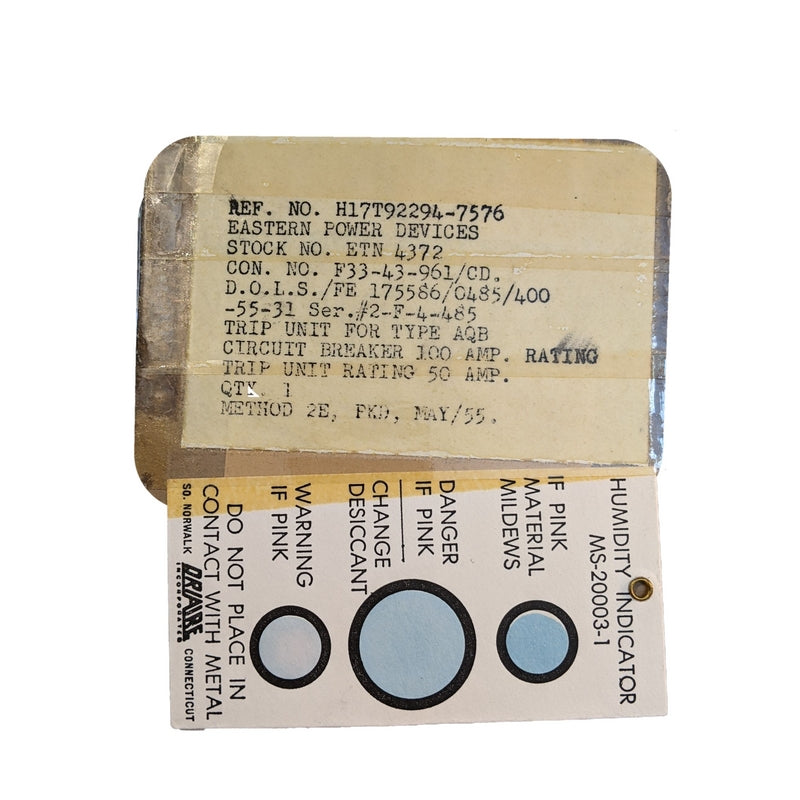

• Navy Stock No H17T92294-7576
• Con No F33-43-961/CD
• DOLS/FE 175586/0485/400-55-31
• Ser #2-F-4-485
• 5925002481444
