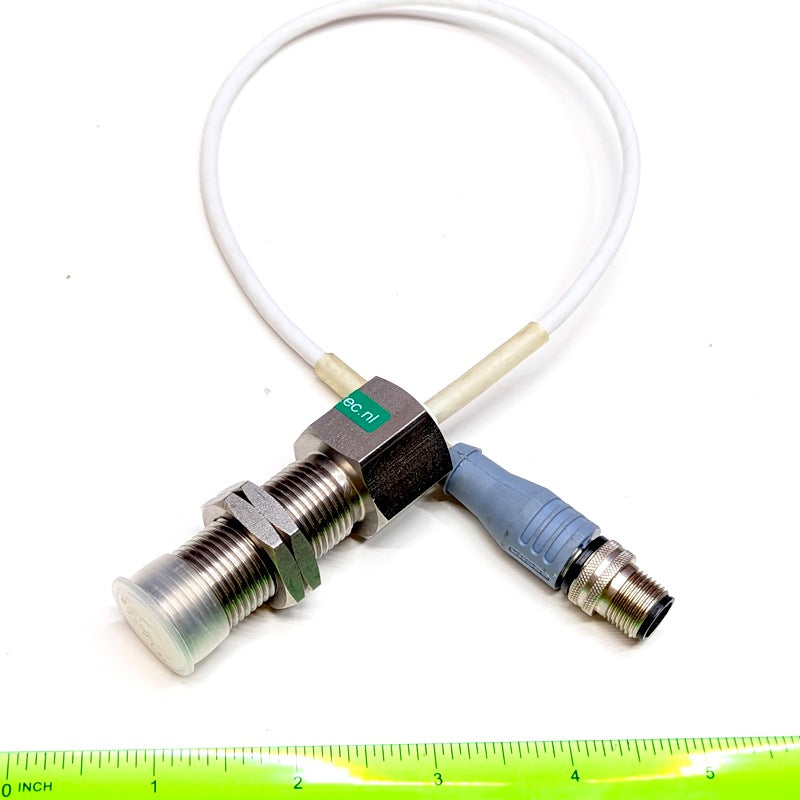

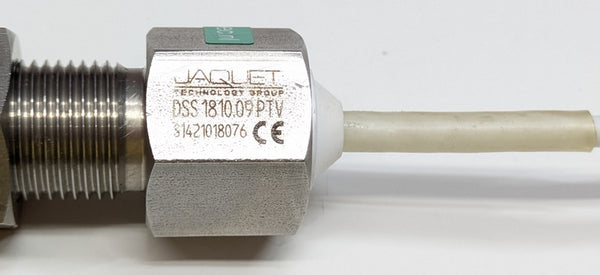

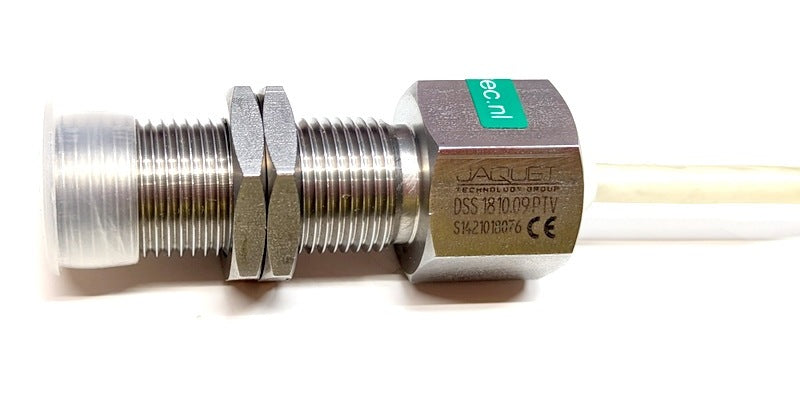

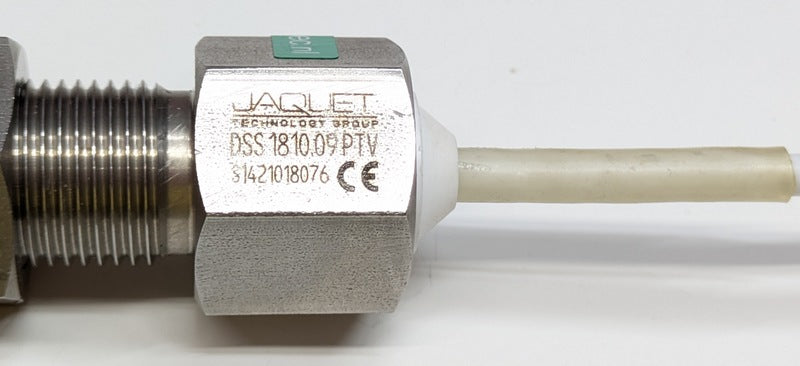

Jaquet DSS 1810.09 PTV New Genuine Original Single Channel Hall Effect Speed Sensor
Jaquet DSS 1810.09 PTV New Genuine Original Single Channel Hall Effect Speed Sensor
Regular price
$675.00 CAD
Regular price
Sale price
$675.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: NEW, Missing Original Box. Missing original packaging, will ship in generic packaging. Operating instructions or manuals not included. Sold with our 30-day "no-hassle" return warranty.
The Jaquet DSS 1810.09 PTV is a precision single-channel Hall effect speed sensor designed for zero-speed detection in industrial and maritime applications. This sensor features a robust stainless steel M18 housing and a push-pull output stage, providing reliable square-wave signals for monitoring rotational speeds in harsh environments.
Key Data:
The Jaquet DSS 1810.09 PTV is a precision single-channel Hall effect speed sensor designed for zero-speed detection in industrial and maritime applications. This sensor features a robust stainless steel M18 housing and a push-pull output stage, providing reliable square-wave signals for monitoring rotational speeds in harsh environments.
Key Data:
- Sensing Technology: Single Channel Hall Effect
- Supply Voltage: 8 to 30 VDC
- Frequency Range: 0 Hz to 20,000 Hz
- Housing Material: Stainless Steel 1.4305
- Thread Size: M18 x 1
- Operating Temperature: -40 F to 257 F (-40 C to 125 C)
- Air Gap Range: 0.008 to 0.059 in (0.20 to 1.50 mm)
- Protection Class: IP67 (Sensor Head)

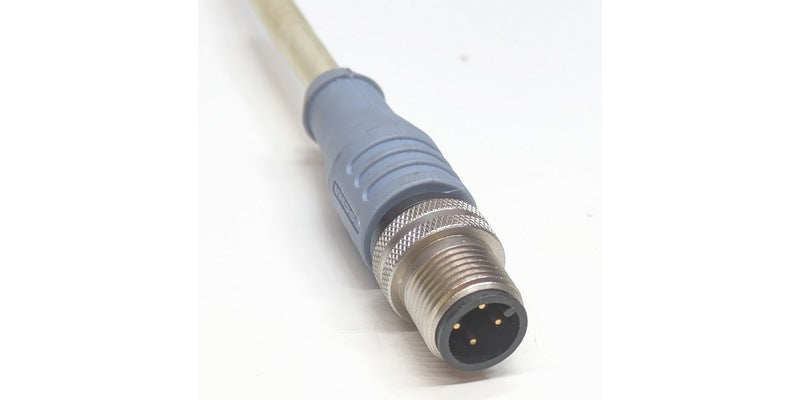

- Cable Type: 4-Wire Shielded FEP Teflon Cable
