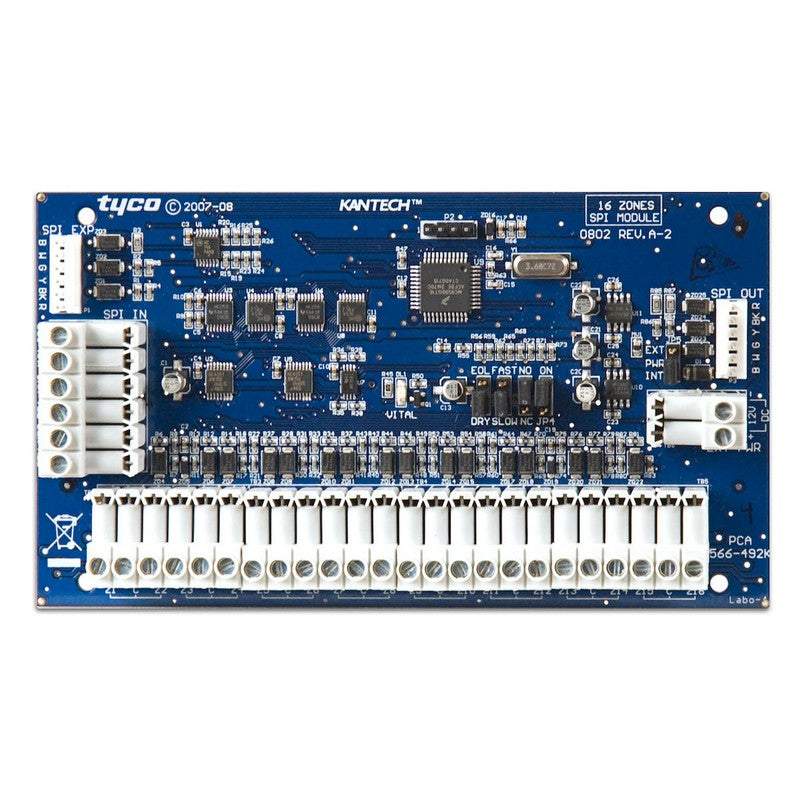

Kantech Tyco/Johnson Controls KT-MOD-INP16 16 Zone Input Expansion Module with SPI Cable
Kantech Tyco/Johnson Controls KT-MOD-INP16 16 Zone Input Expansion Module with SPI Cable
Regular price
$149.00 CAD
Regular price
Sale price
$149.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Ships from Toronto, Canada.
Condition: NEW
The KT-MOD-INP16 is an input module that adds up to 16 zones to the KT-400 controller. The module supports daisy chaining; you can interconnect up to 15 KT-MOD-INP16 modules for a total of 240 external inputs per KT-400. Adding the 16 onboard inputs of the KT-400 gives a total of 256 inputs per KT-400. Combining input and output expansion modules gives the flexibility to connect up to 256 inputs and 256 outputs.
Specifications
- Maximum Current Draw: up to 40 mA per module
- Supports single end-of-line (5.6 KΩ) resistor, double end-ofline resistor and no end-of-line (DRY) zone loops
- Supports Normally Closed (NC) and Normally Open (NO) contacts
- Input change with a debouncing of 500 ms (Slow) or 150 ms (Fast)
- Report conditions per input: SECURE or ALARM in single end-of-line and no end-of-line zone loops, and 2 additional conditions TAMPER and TROUBLE in double end-of-line zone loops
- Can be used for contact or elevator input
- perating Temperature: -10C to +55C, 0C to 49C for UL Listed product
- Maximum Humidity: 93% (non condensing), 0 to 85% (non condensing) for UL Listed product
- IP Class 3X, IK Rating 04 (when mounted in a Kantech cabinet). IP and IK rating not evaluated by Underwriters Laboratories.
