Lectrosonics PA8 8-Channel Power Amplifier

Regular price Cdn $799.00 Cdn $0.00 Unit price per

FREE SHIPPING!

Condition: Used, pulled from working environment. Clean, guaranteed working. Sold with our "no-hassle" 30-day return warranty.

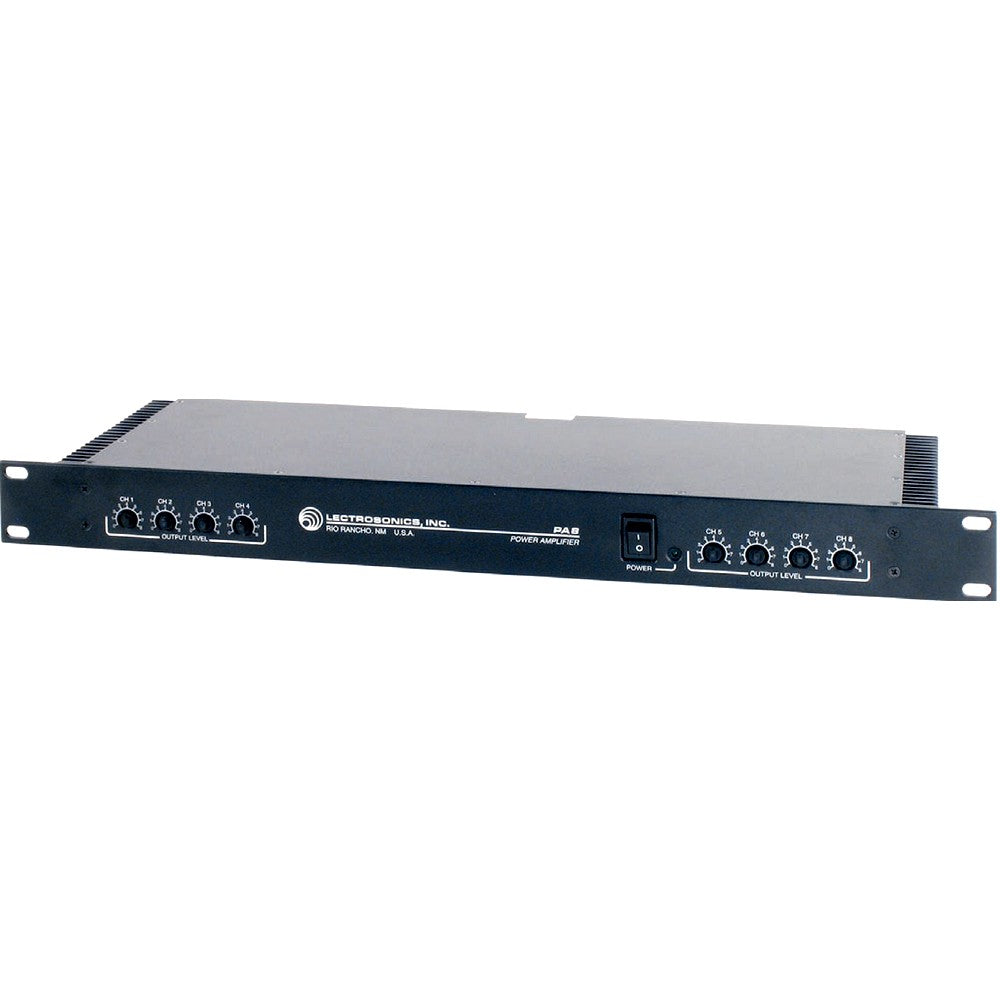

The Lectrosonics PA8 8 Channel Power Amplifier is a unique single rack-space solution for zoned, distributed loudspeaker systems with eight separate power amplifiers, each with an output power capability of 10W (4 Ohms) or 6W (8 Ohms.)

The PA8 is passively cooled, and features full short circuit and thermal overload protection. The amplifier outputs are muted at turn-on and turn-off to eliminate transients.

The PA8 uses a straightforward, low parts count design for long term reliability. The heart of the power supply is a low radiation toroidal transformer. The toroidal transformer generates less heat than a comparable non-toroidal type, and emits considerably less 60Hz energy. This is particularly important when the PA8 is used in close proximity to microphone pre-amplifiers. The input to the PA8 is fully balanced and RF filtered. The level control feeds a monolithic power amplifier. Each power amplifier is internally power limited to protect itself from short circuits, excessively low impedances, or highly reactive loads. Thermal limiting is also integrated into the power amplifier, with an intelligent shutdown mode that minimizes thermal shock to the device under extreme operation. Any two channels may be used in the bridged mode for higher power (20W/8 Ohms or 12W/16 Ohms).

Features
  • Single-space rack unit
  • Each of the eight internal amplifiers is capabable of outputting 6 watts at 8 ohms or 10 watts at 4 ohms
  • Passive cooling
  • Short circuit and thermal overload protection
  • Outputs are muted when the unit is turned on and off to eliminate transients
  • Supports bridged and non-bridged output
  • Front-panel volume control of each channel
  • No turn-on “thump”
Specifications

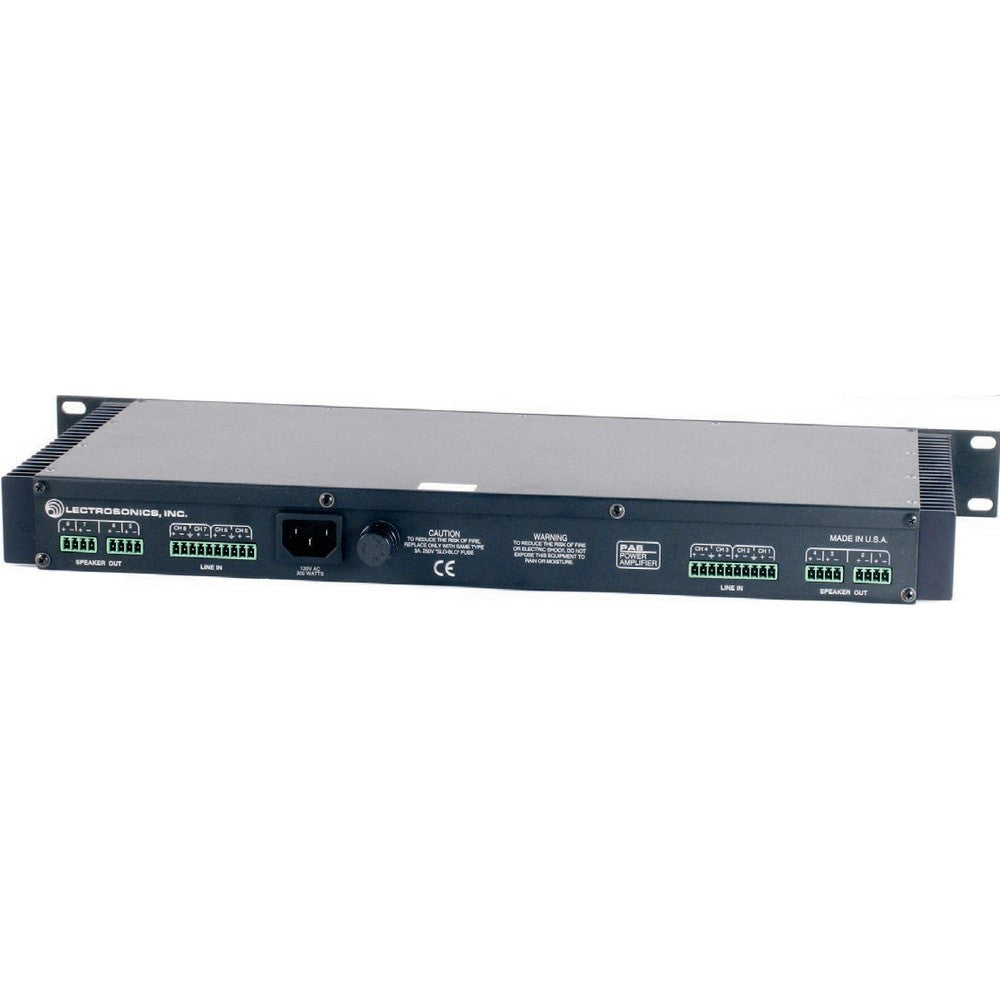

  • Line Input
    • Type: Electronically balanced and RF filtered
    • Impedance: 20k Ohms, Balanced or Unbalanced
  • Rated Output:
    • 10 Watts RMS per channel at 4 Ohms
    • 6 Watts RMS per channel at 8 Ohms
    • 20 Watts RMS bridged at 8 Ohms
  • Input Level for Rated Output:
    • -2dBu (615mVRMS) at maximum level
    • +15dBu (4.36VRMS) at mid level
  • Maximum System Gain Line Input to Speaker Out: 20dB
  • Signal-to-Noise Ratio: 88dB relative to 10W at 4 Ohms
  • System THD: Less than 0.1%, 20Hz to 20kHz(10W into 4 Ohms)
  • System IMD: Less than 0.1%, 60Hz/7kHz(10W into 4 Ohms)
  • Slew Rate: 12V/uS
  • Power Consumption: 200 Watts max at 120VAC
  • Weight: 8 lbs, 9 ozs
  • Dimensions: 19” wide x 1 3/4” high x 8 1/4” deep
