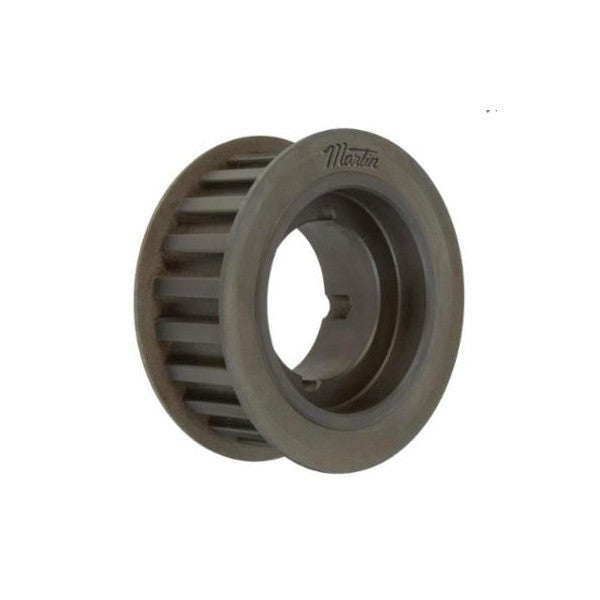

Martin TB16H100 Solid Taper Bushed Timing Pulley, Wide Belt
Martin TB16H100 Solid Taper Bushed Timing Pulley, Wide Belt
Regular price
$69.00 CAD
Regular price
Sale price
$69.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Condition: New but box is scuffed from storage and handling. Sold with our "no-hassle" 30-day return warranty.
Features
- Grooved design for applications requiring synchronous rotation
- ASTM A48 Class 30 gray cast iron for resistance to wear, galling, and corrosion
- Heavy (H) pitch profile for use with same-pitch trapezoidal tooth belts
- For use with same-type taper bushing (not included)
- Double flange to resist belt side thrust and maintain belt contact
Specifications
- Type: Solid Type KF-1
- Bore Type: TB Bushed
- Bore Diameter: 1/2 to 1
- Outside Diameter: 2.492
- Pitch Diameter: 2.546
- Number of Grooves: 16
- Pitch: 1/2
- Face Width: 1.063
- Flange Diameter: 2.779
- Bushing Type: 1008
- Material: Steel
Cross Reference
3020-21-TAN-6802
302021TAB6802
697950083124
