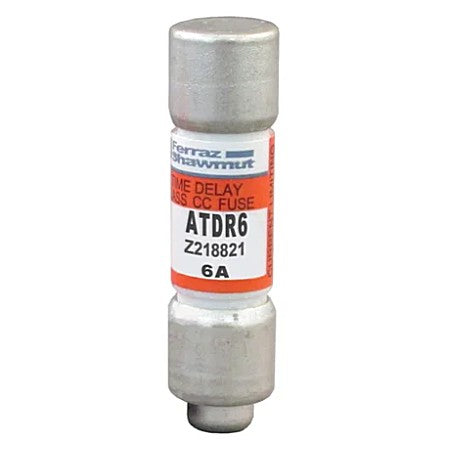

Mersen ATDR6 New Genuine Original 6A 600V Time-Delay Class CC Fuse
Mersen ATDR6 New Genuine Original 6A 600V Time-Delay Class CC Fuse
Regular price
$25.00 CAD
Regular price
Sale price
$25.00 CAD
FREE SHIPPING to Canada and USA! Please ask for shipping rates to other regions. All items ship from Toronto, Canada.
Quantity
Couldn't load pickup availability
Condition: NEW
The Mersen ATDR6 is a 6-amp, time-delay Class CC fuse rated for 600 VAC / 300 VDC. It’s designed for high-inrush applications and provides “no-damage” IEC Type 2 protection for small motors, contactors and branch circuits.
Key Data.
The Mersen ATDR6 is a 6-amp, time-delay Class CC fuse rated for 600 VAC / 300 VDC. It’s designed for high-inrush applications and provides “no-damage” IEC Type 2 protection for small motors, contactors and branch circuits.
Key Data.
- Fuse class: Class CC, time-delay
- Rated current: 6 A
- Rated voltage: 600 V AC / 300 V DC
- Interrupting rating: 200 kA AC / 100 kA DC
- Dimensions: ~10.4 mm diameter × 38.1 mm length (≈ 13/32″ × 1½″)
- Application: Small motors, lighting, contactors, heating loads, general branch-circuit protection
