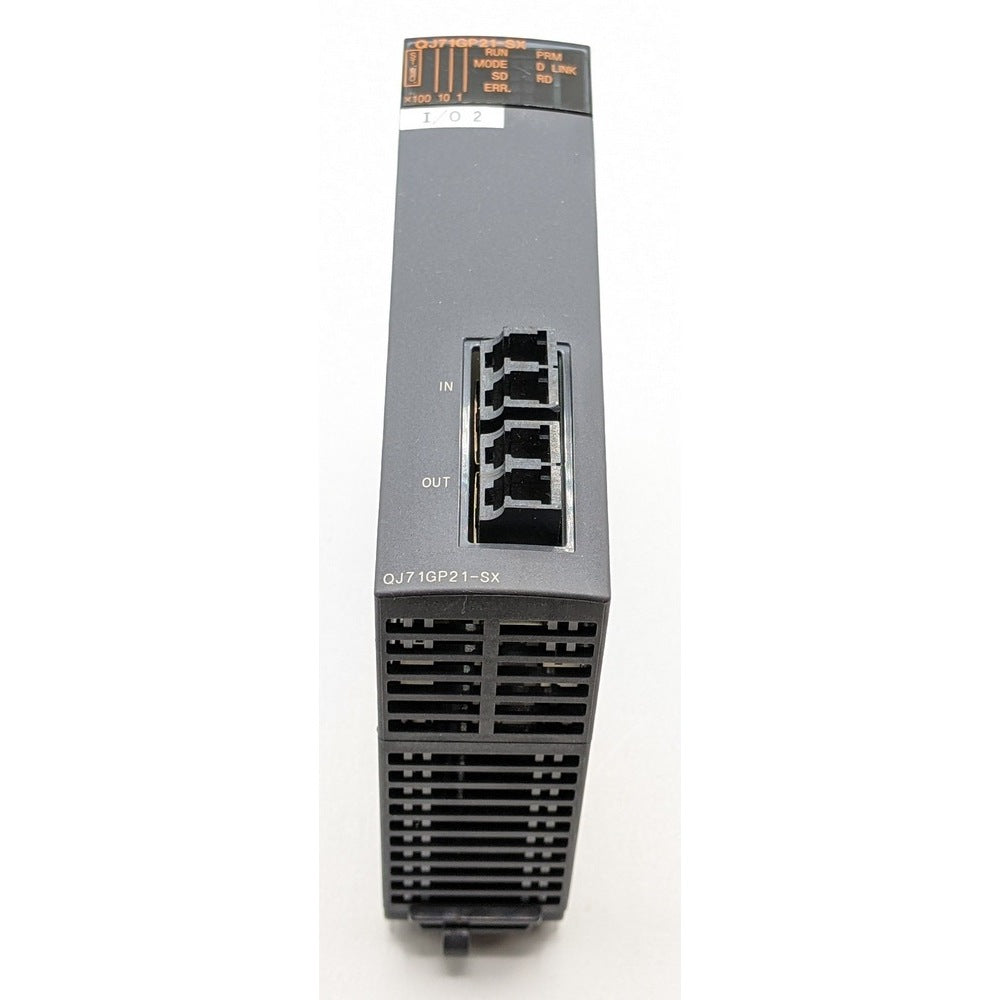

Mitsubishi QJ71GP21-SX MELSEC-Q Series CC-Link IE Controller Network Module
Mitsubishi

Mitsubishi QJ71GP21-SX MELSEC-Q Series CC-Link IE Controller Network Module

$349.00 $0.00

Condition: Used, pulled from working environment. Very clean, guaranteed working. Sold with our "no-hassle" 30-day return warranty.

Specifications
  • Communication speed : 1 Gbps
  • Communication cable : Optical fiber cable that meets 1000 BASE-SX standards: multimode optical fiber (GI)
  • Applicable connector : Double LC type connector
  • Laser class (JIS C 6802, IEC 60825-1) : Class 1 laser products
  • Total extension distance : 66000 m (when 120 units are connected)
  • Maximum Inter-Station Distance : 550 m
  • Maximum number of connected stations
    • When the management station is the universal model QCPU: 120 (management station: 1 unit, normal station: 119 units)
    • When the management station is a high performance model QCPU: 64 units (management station: 1 unit, normal station: 63 units)
  • Maximum number of networks : 239
  • Maximum number of groups : 32
  • Communication method : Token ring method
  • Transmission path format : Double loop
  • Number of occupied I / O points : 32 points (I / O assignment : 32 points of intelligence)
  • DC 5 V Internal current consumption : 0.85 A
  • External dimensions (HxWxD) : 9.8cm x 2.74cm x 9cm
  • Weight : 0.18 Kg
