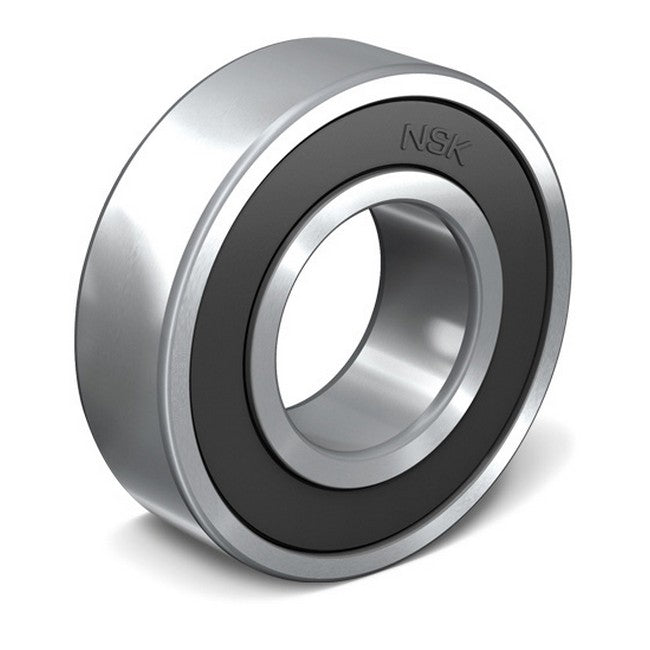

NSK R8VVCM Radial/Deep Groove Double Sealed Low Noise Ball Bearing
NSK

NSK R8VVCM Radial/Deep Groove Double Sealed Low Noise Ball Bearing

Regular price $39.95 $0.00 Unit price per

FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!

Condition: New

This bearing is part of the CM group which is specified for the deep groove ball bearings used in electric motors where noise must be minimized.

Specifications
  • Cage Material Steel
  • Static Load Capacity 538 lbs
  • Closure Type Double Sealed
  • Operating Temperature Range -10 to +110 °C
  • Outside Diameter 1.1250 in
  • Internal Clearance CM (within 4-11 um of C2 clearance)
  • Weight 0.04 lbs
  • Finish Coating Uncoated
  • Bore Type Round
  • Overall Width 0.3125 in
  • Series R
  • Outer Ring Width 5/16 in
  • Bore Diameter 0.5000 in
  • Dynamic Load Capacity 1150 lb
  • Maximum RPM 30000 RPM
  • Precision Rating Not Rated
