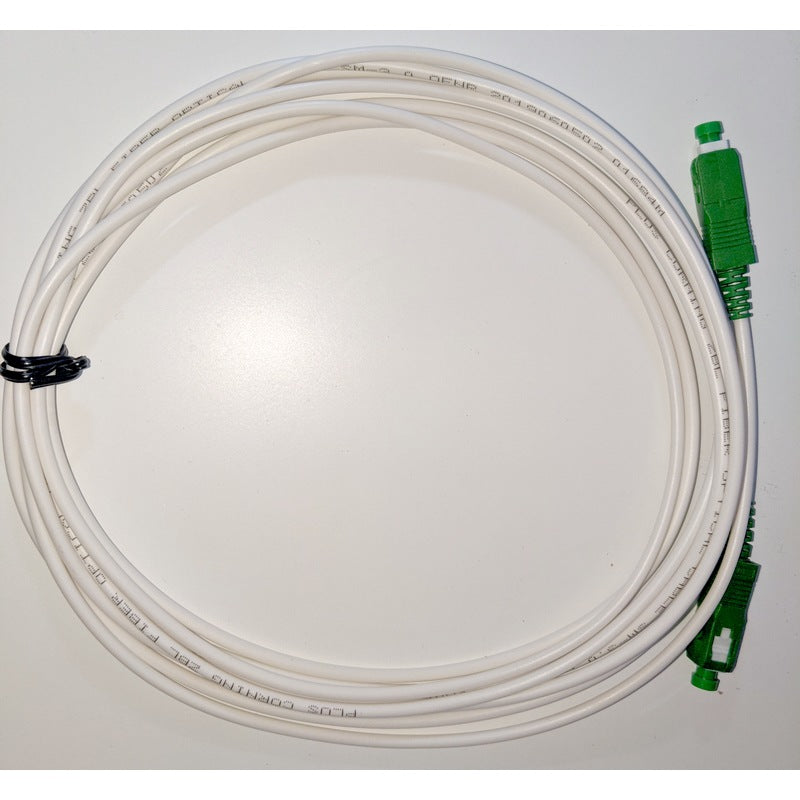

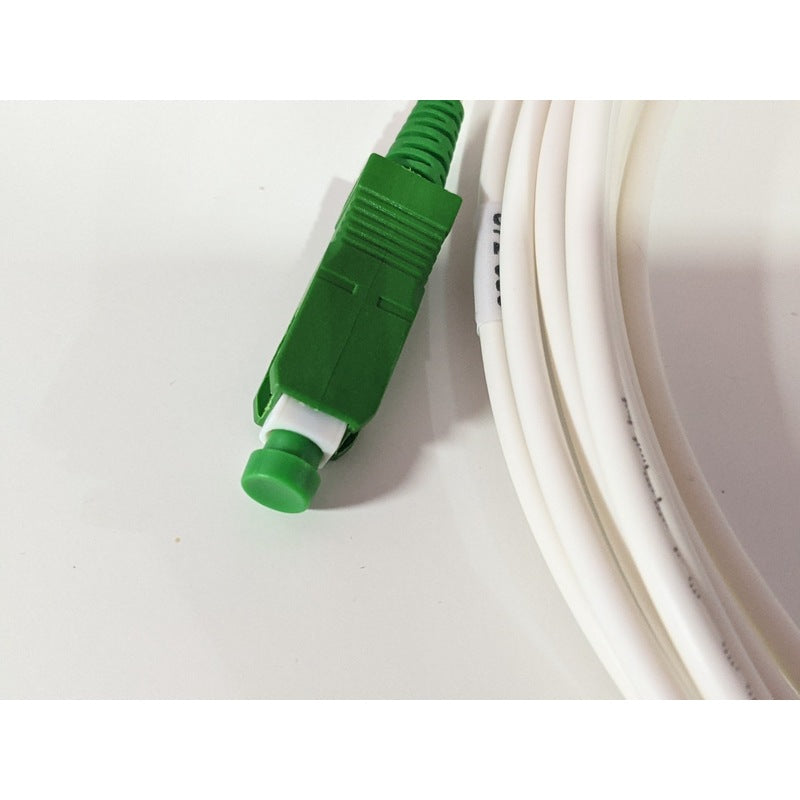

O-M6 Technologies 9/125 Simplex Fiber Patch Cord, SCA-SCA, 3m, 5-Pack
O-M6 Technologies 9/125 Simplex Fiber Patch Cord, SCA-SCA, 3m, 5-Pack
OM6 Technologies

O-M6 Technologies 9/125 Simplex Fiber Patch Cord, SCA-SCA, 3m, 5-Pack

Regular price Cdn $29.99 Cdn $0.00 Unit price per

Condition: New

Part #: SCA-070-SCA-3m

Specifications
  • Polish (Singlemode or Multimode) APC (SM)
  • Insertion loss (typical value) 0.35 dB
  • Return loss (typical value) -65.0 dB
  • Apex offset 0-50 um
  • Radius of curvature 5-12 mm
  • Fiber height -100 +50 mm
  • Durability : IL < 0.7dB, RTL > nominal cycles More than 1000
  • Bending radius, long term cm 1 for Bend-insensitive fiber, 3 for standard fiber
  • Length tolerance (lengths) m 1 <= L < 20 : -0 /+0.1 (tight tolerance available)
  • Operating temperature -20 to +70 C
