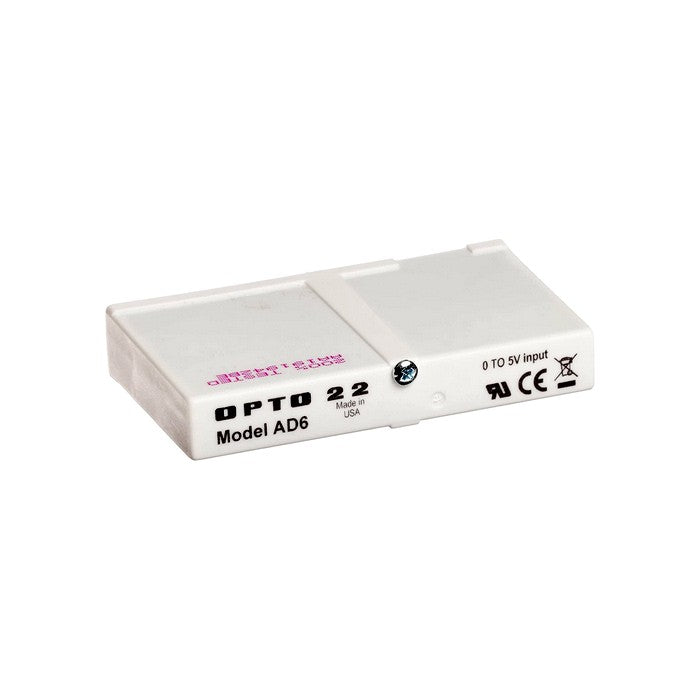

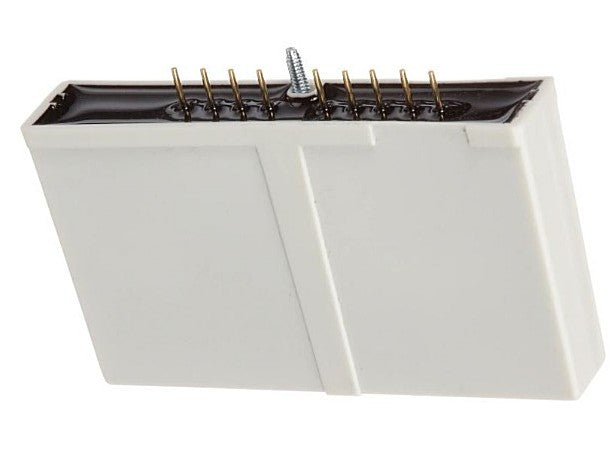

Opto 22 AD6 Analog Input Module, 0 To +5 VDC
Opto 22 AD6 Analog Input Module, 0 To +5 VDC
Opto 22

Opto 22 AD6 Analog Input Module, 0 To +5 VDC

Regular price $124.95 $0.00 Unit price per

FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!

Condition: New

The AD6 analog input module provides a single channel of optically isolated voltage-to-digital conversion. Nominal voltage input is 0 to + 5 VDC. This module mounts on a G1 analog mounting rack.

Specifications
  • Nominal input voltage 0-5 VDC
  • Over/Under Range Capability -0.125 to 11 VDC
  • Accuracy ± 5 mV
  • Power Requirements:
    • 16 mA at +15 (+/- 0.25) VDC
    • 11 mA at -15 (+/- 0.25) VDC
  • Agency Approvals CE; RoHS; UKCA
  • Input Response Time 5% of scale change in 8.5 ms 63% of scale change in 165 ms
  • Resolution 12-bits
  • Temperature
    • Operating 0 to 70 °C
    • Storage -25 to 85 °C
