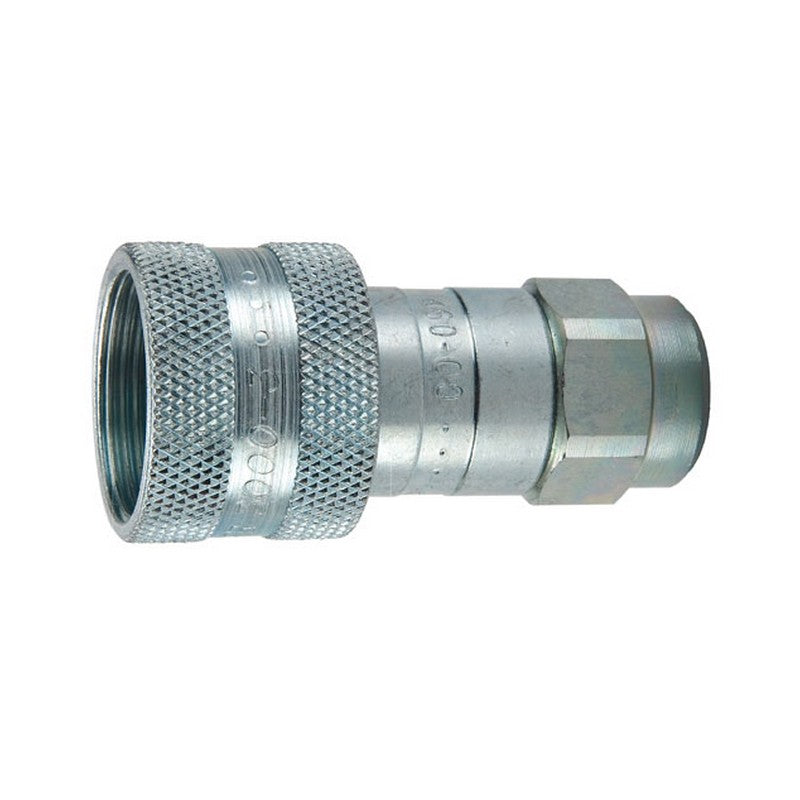

Parker 3050-3-231 Hydraulic High Pressure Quick Coupler, Thread to Connect Interchange
Parker

Parker 3050-3-231 Hydraulic High Pressure Quick Coupler, Thread to Connect Interchange

Regular price Cdn $49.00 Cdn $0.00 Unit price per

Condition: New

3000 Series Couplers (hydraulic) 10,000 psi, connect with 3000 Series Nipples.
These rugged thread to connect, high pressure quick couplings are manually threaded together to open the ball valves and make the connection. The durable coupler interface seal is polyurethane.

Features/Benefits

  • Rugged and secure threaded connection interchanges with similar hand tool couplings
  • Hard chrome alloy ball valves
  • Polyurethane seal resists against high pressure extrusion
  • Positive valve stop prevents flow checking for a smooth performance

Applications

  • High pressure rescue tools
  • Hydraulic rams
  • Portable hydraulic hand tools
  • Crimping equipment
Specifications
  • Connection Thread Size (inch):3/8 - 18
  • Connection Type:NPTF
  • Body Size (inch):3/8
  • Thread Style:Female
  • Maximum Operating Pressure:10000 psi
  • Flow Rate:6 Gal/min
  • Media:Hydraulic
  • Coupling Half:Coupler
  • Minimum Operating Temperature:-22 °F
  • Maximum Operating Temperature:230 °F
  • Seal Material:Polyurethane
  • Valve Type:Ball
  • Body Material:Steel
  • Application:Hydraulic, high pressure
  • Plating Type:Zinc with clear trivalent chromate
  • Sleeve Type:Thread to connect
