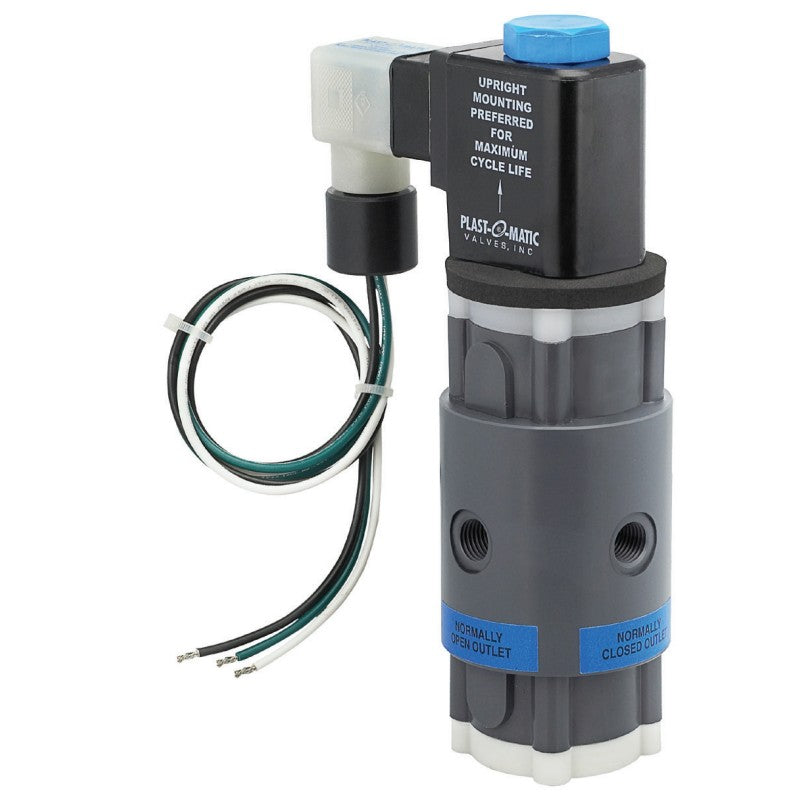

Plast-O-Matic THP4EP8W24 1/2" PVC THP 3-Way Solenoid Valve, Electric Actuated with EPDM Seals
FREE SHIPPING ANYWHERE IN USA & CANADA INCLUDED!
Series THP, three-way solenoid valves are used to divert flows from a common inlet to either of two outlets. The valves are ideal for sprayhead or filter applications where high back pressures exist. Recommended for handling corrosive or ultra-pure liquids. Standard valve is not designed for vacuum service; consult factory if needed.
- Balanced shaft design permits higher pressures.
- Bubble-tight sealing.
- No metal parts in wetted area.
- Patented Fail-Dry safety design provides warning of seal failure while allowing valve to continue functioning
- Connection Type FPT
- Size 1/2 inch
- Voltage 120VAC 60Hz
- Watts 24
- Orifice 1/4 inch
- Seal Material EPDM
- Actuator Type Electric
- Body Material PVC
- Valve Series THP
- Max Inlet Pressure 40psi
- Max Back Pressure 40psi
